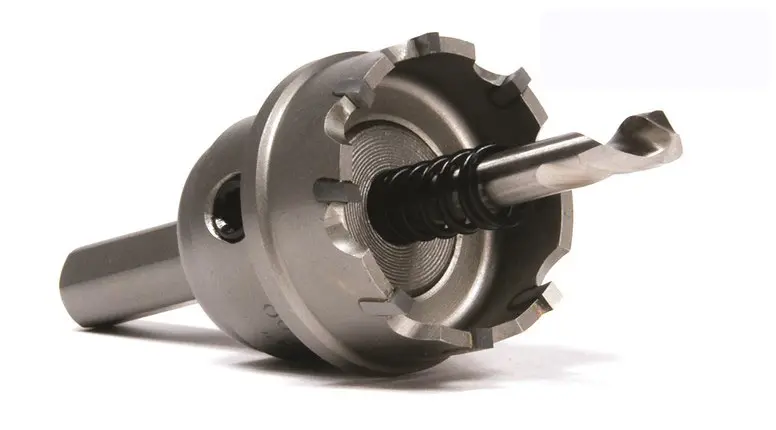

Carbide Hole Cutter™ For Sheet Metal And Thin Materials

Carbide Hole Cutter

Maximum depth of cut 1/8″ & 1″

MAX Depth of Cut 1/8"
Cutter Dia.
(Inches)		 Decimal
Equiv.		 Part No.
Replacement Pilot 14301 &
Spring 14303 (3/8" Chuck)
11/16" .6875 14322
3/4" .7500 14324
13/16" .8125 14326
7/8" .8750 14328
15/16" .9375 14330
1" 1.0000 14332
1-1/16" 1.0625 14334
1-1/8" 1.1250 14336
1-3/16" 1.1875 14338
1-1/4" 1.2500 14340
1-5/16" 1.3125 14342
1-3/8" 1.3750 14344
1-1/2" 1.5000 14348
1-5/8" 1.6250 14352
1-3/4" 1.7500 14356
2" 2.0000 14362
2-1/8" 2.1250 14366
2-1/4" 2.2500 14368
2-3/8" 2.3750 14372
2-3/8" 2.3750 14372
Replacement Pilot 14302 & Spring 14304 (1/2" Chuck)
2-1/2" 2.5000 14374
2-5/8" 2.6250 14378
2-3/4" 2.7500 14380
3" 3.0000 14384
MAX Depth of Cut 1"
Cutter Dia.
(Inches)		 Decimal
Equiv.		 Part No.
5/8.625014520
11/16.687514522
3/4.750014524
13/16.812514526
7/8.875014528
15/16.937514530
11.000014532
1-1/161.062514534
1-1/81.125014536
1-3/161.187514538
1-1/41.250014540
1-5/161.312514542
1-3/81.375014544
1-1/21.500014548
1-5/81.625014552
1-3/41.750014556
22.000014562
2-1/82.125014566
2-1/42.250014568
2-3/82.3750 14572
2-1/22.500014574
2-5/82.625014576
2-3/42.750014580
33.000014584
3-1/43.250014586
3-3/83.375014588
3-1/23.500014590
3-5/83.625014592
3-3/43.750014594
44.000014595
4-1/44.250014596
4-3/84.375014597
4-1/24.500014598
Replacement Pilot & Spring for Above Cutters
Pilot for cutters up to 2-1/4" (3-Pack) 2.2500 14503
Pilot for cutters 2-3/8" & up (3-Pack) 2.3750 14504
Spring for cutters up to 2-1/4" (3-Pack) 2.2500 14505
Spring for cutters 2-3/8" & up (3-Pack) 2.3750 14506
