Punch-Pro™
Punch-Pro™ — MODEL 76000PR
| ROUND PUNCH | MATERIAL | DIE | |||||
|---|---|---|---|---|---|---|---|
| Size | Part No. | Thickness | Style | Size | Part No. | ||
| Nominal | Actual | Metric | |||||
| 5/32″ | .157 | 4mm | 76558 | 5/64 (.078) 14 GA. | F, A | Die 5/32 SA | 76571 |
| 3/16″ | .197 | 5mm | 76559 | 5/64 (.078) to .118 14 to 12 GA. | F, A | Die 3/16 SA | 76572 |
| 7/32″ | .217 | 5.5mm | 76560 | 5/64 (.078) to .118 14 to 12 GA. | F, A | Die 7/32 SA | 76573 |
| 15/64″ | .236 | 6mm | 76561 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. | F, A | Die 15/64 SA | 76574 |
| 15/64″ | .236 | 6mm | 76561 | 5/64 (.125) to 5/32 (.157) 10 to 9 GA. | F, A | Die 15/64 SB | 76575 |
| 1/4″ | .256 | 6.5mm | 76562 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. | F, A | Die 1/4 SA | 76576 |
| 1/4″ | .256 | 6.5mm | 76562 | >5/64 (.125) to 1/4 (.250) 10 to 3 GA. | F, A | Die 1/4 SB | 76577 |
| 5/16″ | .315 | 8mm | 76563 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. | F, A | Die 5/16 SA | 76578 |
| 5/16″ | .315 | 8mm | 76563 | >5/64 (.125) to 1/4 (.250) 10 to 3 GA. | F, A | Die 5/16 SB | 76579 |
| 11/32″ | .335 | 8.5mm | 76564 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. | F, A | Die 11/32 SA | 76580 |
| 11/32″ | .335 | 8.5mm | 76564 | >5/64 (.125) to 1/4 (.250) 10 to 3 GA. | F, A | Die 11/32 SB | 76581 |
| 3/8″ | .394 | 10mm | 76565 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. | F, A | Die 3/8 SA | 76582 |
| 3/8″ | .394 | 10mm | 76565 | >5/64 (.125) to 1/4 (.250) 10 to 3 GA. | F, A | Die 3/8 SB | 76583 |
| 7/16″ | .433 | 11mm | 76566 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. | F, A | Die 7/16 SA | 76584 |
| 7/16″ | .433 | 11mm | 76566 | >5/64 (.125) to 1/4 (.250) 10 to 3 GA. | F, A | Die 7/16 SB | 76585 |
| 15/32″ | .472 | 12mm | 76567 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. | F, A | Die 15/32 SA | 76586 |
| 15/32″ | .472 | 12mm | 76567 | >5/64 (.125) to 1/4 (.250) 10 to 3 GA. | F, A | Die 15/32 SB | 76587 |
| 1/2″ | .512 | 13mm | 76568 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. | F, A | Die 1/2 SA | 76588 |
| 1/2″ | .512 | 13mm | 76568 | >5/64 (.125) to 1/4 (.250) 10 to 3 GA. | F, A | Die 1/2 SB | 76589 |
| 9/16″ | .551 | 14mm | 76569 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. | F, A | Die 9/16 SA | 76590 |
| 9/16″ | .551 | 14mm | 76569 | >5/64 (.125) to 1/4 (.250) 10 to 3 GA. | F, A | Die 9/16 SB | 76591 |
| 19/32″ | .591 | 15mm | 76570 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. | F, A | Die 19/32 SA | 76592 |
| 19/32″ | .591 | 15mm | 76570 | >5/64 (.125) to 1/4 (.250) 10 to 3 GA. | F, A | Die 19/32 SB | 76593 |
| OBLONG PUNCH | MATERIAL | DIE | |||||
|---|---|---|---|---|---|---|---|
| Size | Part No. | Thickness | Style | Size | Part No. | ||
| Nominal | Actual | Metric | |||||
|
1/4″ |
.256 x .394 |
6.5mm x 10mm |
76594 | >1/8 (.125) to 1/4 (.250) 10 to 3 GA. |
F, A | Die 1/4 x 3/8 | 76236 |
| 1/4″ x 1/2″ |
.256 |
6.5mm x 13mm |
76595 | >1/8 (.125) to 1/4 (.250) 10 to 3 GA. |
F, A | Die 1/4 x 1/2 | 76237 |
| 11/32″ x 1/2″ |
.335 x .512 |
8.5mm x 13mm |
76596 | >1/8 (.125) to 1/4 (.250) 10 to 3 GA. |
F, A | Die 11/32 x 1/2 | 76238 |
| 23/64″ x 17/32″ |
.354 x .531 |
9mm x 13.5mm |
76597 | >1/8 (.125) to 1/4 (.250) 10 to 3 GA. |
F, A | Die 23/64 x 17/32 | 76240 |
| 3/8″ x 19/32″ |
.394 x .591 |
10mm x 15mm |
76598 | >1/8 (.125) to 1/4 (.250) 10 to 3 GA. |
F, A | Die 3/8 x 19/32 | 76241 |
| 7/16″ x 5/8″ |
.433 x .625 |
11mm x 15.9mm |
76599 | >1/8 (.125) to 1/4 (.250) 10 to 3 GA. |
F, A | Die 7/16 x 5/8 | 76242 |

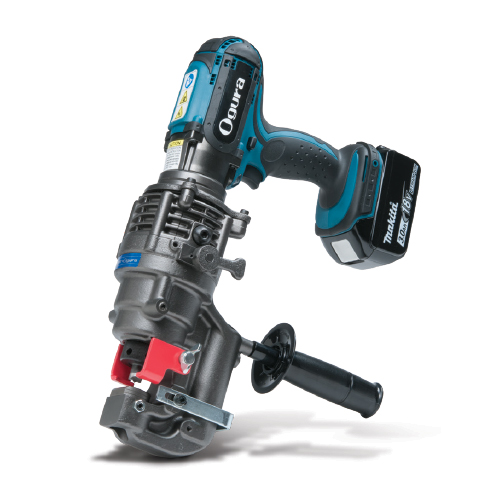

Punch-Pro™ — MODEL 75002.5PR
| ROUND PUNCH | MATERIAL | DIE | |||||
|---|---|---|---|---|---|---|---|
| Size | Part No. | Thickness | Style | Size | Part No. | ||
| Nominal | Actual | Metric | |||||
| 5/32″ | .157 | 4mm | 76558 | 5/64 (.078) 14 GA. | F, A | Die 5/32 SA | 76571 |
| 3/16″ | .197 | 5mm | 76559 | 5/64 (.078) to .118 14 to 12 GA. | F, A | Die 3/16 SA | 76572 |
| 7/32″ | .217 | 5.5mm | 76560 | 5/64 (.078) to .118 14 to 12 GA. | F, A | Die 7/32 SA | 76573 |
| 15/64″ | .236 | 6mm | 76561 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. | F, A | Die 15/64 SA | 76574 |
| 15/64″ | .236 | 6mm | 76561 | 5/64 (.125) to 5/32 (.157) 10 to 9 GA. | F, A | Die 15/64 SB | 76575 |
| 1/4″ | .256 | 6.5mm | 76562 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. | F, A | Die 1/4 SA | 76576 |
| 1/4″ | .256 | 6.5mm | 76562 | >5/64 (.125) to 1/4 (.250) 10 to 3 GA. | F, A | Die 1/4 SB | 76577 |
| 5/16″ | .315 | 8mm | 76563 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. | F, A | Die 5/16 SA | 76578 |
| 5/16″ | .315 | 8mm | 76563 | >5/64 (.125) to 1/4 (.250) 10 to 3 GA. | F, A | Die 5/16 SB | 76579 |
| 11/32″ | .335 | 8.5mm | 76564 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. | F, A | Die 11/32 SA | 76580 |
| 11/32″ | .335 | 8.5mm | 76564 | >5/64 (.125) to 1/4 (.250) 10 to 3 GA. | F, A | Die 11/32 SB | 76581 |
| 3/8″ | .394 | 10mm | 76565 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. | F, A | Die 3/8 SA | 76582 |
| 3/8″ | .394 | 10mm | 76565 | >5/64 (.125) to 1/4 (.250) 10 to 3 GA. | F, A | Die 3/8 SB | 76583 |
| 7/16″ | .433 | 11mm | 76566 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. | F, A | Die 7/16 SA | 76584 |
| 7/16″ | .433 | 11mm | 76566 | >5/64 (.125) to 1/4 (.250) 10 to 3 GA. | F, A | Die 7/16 SB | 76585 |
| 15/32″ | .472 | 12mm | 76567 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. | F, A | Die 15/32 SA | 76586 |
| 15/32″ | .472 | 12mm | 76567 | >5/64 (.125) to 1/4 (.250) 10 to 3 GA. | F, A | Die 15/32 SB | 76587 |
| 1/2″ | .512 | 13mm | 76568 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. | F, A | Die 1/2 SA | 76588 |
| 1/2″ | .512 | 13mm | 76568 | >5/64 (.125) to 1/4 (.250) 10 to 3 GA. | F, A | Die 1/2 SB | 76589 |
| 9/16″ | .551 | 14mm | 76569 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. | F, A | Die 9/16 SA | 76590 |
| 9/16″ | .551 | 14mm | 76569 | >5/64 (.125) to 1/4 (.250) 10 to 3 GA. | F, A | Die 9/16 SB | 76591 |
| 19/32″ | .591 | 15mm | 76570 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. | F, A | Die 19/32 SA | 76592 |
| 19/32″ | .591 | 15mm | 76570 | >5/64 (.125) to 1/4 (.250) 10 to 3 GA. | F, A | Die 19/32 SB | 76593 |
| OBLONG PUNCH | MATERIAL | DIE | |||||
|---|---|---|---|---|---|---|---|
| Size | Part No. | Thickness | Style | Size | Part No. | ||
| Nominal | Actual | Metric | |||||
| 1/4" x 3/8" | .256 x .394 | 6.5mm x 10mm | 76347 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 1/4 (.250) 14 to 3 GA. | F, A, H | Die 1/4 x 3/8 A | 76300 76301 |
| 1/4" x 1/2" | .256 x .512 | 6.5mm x 13mm | 76348 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 1/4 (.250) 14 to 3 GA. | F, A, H | Die 1/4 x 1/2 A | 75643 75644 |
| 11/32" x 1/2" | .335 x .512 | 8.5mm x 13mm | 76349 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 1/4 (.250) 14 to 3 GA. | F, A, H | Die 11/32 x 1/2 A | 75645 75646 |
| 11/32" x 43/64" | .335 x .669 | 8.5mm x 17mm | 76350 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 1/4 (.250) 14 to 3 GA. | F, A, H | Die 11/32 x 43/64 A | 76302 76303 |
| 23/64" x 17/32" | .354 x .531 | 9mm x 13.5mm | 76351 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 1/4 (.250) 14 to 3 GA. | F, A, H | Die 23/64 x 17/32 A | 76304 76305 |
| 3/8" x 19/32" | .394 x .591 | 10mm x 15mm | 76352 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 1/4 (.250) 14 to 3 GA. | F, A, H | Die 3/8 x 19/32 A | 76306 76307 |
| 7/16" x 5/8" | .433 x .625 | 11mm x 15.9mm | 76353 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 1/4 (.250) 14 to 3 GA. | F, A, H | Die 7/16 x 5/8 A | 75647 75648 75655 |
| 1/2" x 3/4" | .512 x .750 | 13mm x 19mm | 76354 | 5/64 (.078) to 1/4 (.250) 14 to 3 GA. 5/64 (.078) to 1/4 (.250) 14 to 3 GA. | F, A, H | Die 1/2 x 3/4 B | 75649 75650 |
| 9/16" x 13/16" | .551 x .827 | 14mm x 21mm | 76355 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 1/4 (.250) 14 to 3 GA. | F, A, H | Die 9/16 x 13/16 A | 75651 75652 |
Punch-Pro™ — MODEL 75004PR
| ROUND PUNCH | MATERIAL | DIE | |||||
|---|---|---|---|---|---|---|---|
| Size | Part No. | Thickness | Style | Size | Part No. | ||
| Nominal | Actual | Metric | |||||
| 15/64″ | .234 | 6mm | 76334 |
5/64 (.078) to 1/8 (.125), 14 to 11 GA. 5/64 (.078) to 1/4 (.250), 14 to 3 GA. |
F, A, H F, A, H |
Die 15/64 SA Die 15/64 SB |
76308 76309 |
| 1/4″ | .256 | 6.5mm | 76335 |
5/64 (.078) to 1/8 (.125), 14 to 11 GA. 5/64 (.078) to 1/4 (.250), 14 to 3 GA. |
F, A, H F, A, H |
Die 1/4 SA Die 1/4 SB |
76310 76311 |
| 5/16″ | .315 | 8mm | 76336 |
5/64 (.078) to 1/8 (.125), 14 to 11 GA. 5/64 (.078) to 1/4 (.250), 14 to 3 GA. |
F, A, H F, A, H |
Die 5/16 SA Die 5/16 SB |
76312 76313 |
| 11/32″ | .335 | 8.5mm | 76337 |
5/64 (.078) to 1/8 (.125), 14 to 11 GA. 5/64 (.078) to 1/4 (.250), 14 to 3 GA. |
F, A, H F, A, H |
Die 11/32 SA Die 11/32 SB |
76314 76315 |
| 3/8″ | .394 | 10mm | 76338 |
5/64 (.078) to 1/8 (.125), 14 to 11 GA. 5/64 (.078) to 1/4 (.250), 14 to 3 GA. |
F, A, H F, A, H C |
Die 3/8 SA Die 3/8 SB Die 3/8 C |
76316 76317 75450 |
| 7/16″ | .433 | 11mm | 76339 |
5/64 (.078) to 1/8 (.125), 14 to 11 GA. 5/64 (.078) to 3/8 (.375) 5/16 (.312) max. |
F, A, H F, A, H C |
Die 7/16 SA Die 7/16 SB Die 7/16 C |
76318 76319 75451 |
| 15/32″ | .472 | 12mm | 75910 |
5/64 (.078) to 1/8 (.125), 14 to 11 GA. 5/64 (.078) to 3/8 (.375) |
F, A, H F, A, H |
Die 15/32 SA Die 15/32 SB |
75912 75913 |
| 1/2″ | .512 | 13mm | 76340 |
5/64 (.078) to 1/8 (.125), 14 to 11 GA. 5/64 (.078) to 3/8 (.375) 5/16 (.312) max. |
F, A, H F, A, H C |
Die 1/2 SA Die 1/2 SB Die 1/2 C |
76320 76321 75452 |
| 9/16″ | .551 | 14mm | 76341 |
5/64 (.078) to 1/8 (.125), 14 to 11 GA. 5/64 (.078) to 3/8 (.375) 5/16 (.312) max. |
F, A, H F, A, H C |
Die 9/16 SA Die 9/16 SB Die 9/16 C |
76322 76323 75453 |
| 19/32″ | .591 | 15mm | 76342 |
5/64 (.078) to 1/8 (.125), 14 to 11 GA. 5/64 (.078) to 3/8 (.375) |
F, A, H F, A, H |
Die 19/32 SA Die 19/32 SB |
76324 76325 |
| 5/8″ | .625 | 15.9mm | 76343 |
5/64 (.078) to 1/8 (.125), 14 to 11 GA. 5/64 (.078) to 3/8 (.375), 14 to 3 GA. 5/16 (.312) max. |
F, A, H F, A, H C |
Die 5/8 SA Die 5/8 SB Die 5/8 C |
76326 76327 75959 |
| 11/16″ | .688 | 17.5mm | 76344 |
5/64 (.078) to 1/8 (.125), 14 to 11 GA. 5/64 (.078) to 3/8 (.375) 5/16 (.312) max. |
F, A, H F, A, H C |
Die 11/16 SA Die 11/16 SB Die 11/16 C |
76328 76329 75960 |
| 23/32″ | .709 | 18mm | 75911 |
5/64 (.078) to 1/8 (.125), 14 to 11 GA. 5/64 (.078) to 3/8 (.375) |
F, A, H F, A, H |
Die 23/32 SA Die 23/32 SB |
75915 75916 |
| 3/4″ | .750 | 19mm | 76345 |
5/64 (.078) to 1/8 (.125), 14 to 11 GA. 5/64 (.078) to 3/8 (.375) 5/16 (.312) max. |
F, A, H F, A, H C |
Die 3/4 SA Die 3/4 SB Die 3/4 C |
76330 76331 75961 |
| 25/32″ | .787 | 20mm | 76346 |
5/64 (.078) to 1/8 (.125), 14 to 11 GA. 5/64 (.078) to 3/8 (.375) 5/16 (.312) max. |
F, A, H F, A, H C |
Die 25/32 SA Die 25/32 SB Die 25/32 C |
76332 76333 75962 |
| OBLONG PUNCH | MATERIAL | DIE | |||||
|---|---|---|---|---|---|---|---|
| Size | Part No. | Thickness | Style | Size | Part No. | ||
| Nominal | Actual | Metric | |||||
| 1/4″ x 3/8″ | .256 x .394 |
6.5mm x 10mm |
76347 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 1/4 (.250) |
F, A, H F, A, H |
Die 1/4 x 3/8 A Die 1/4 x 3/8 B |
76300 76301 |
| 1/4″ x 1/2″ | .256 x .512 |
6.5mm x 13mm |
76348 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 1/4 (.250) |
F, A, H F, A, H |
Die 1/4 x 1/2 A Die 1/4 x 1/2 B |
75643 75644 |
| 11/32″ x 1/2″ | .335 x .512 |
8.5mm x 13mm |
76349 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 1/4 (.250) |
F, A, H F, A, H |
Die 11/32 x 1/2 A Die 11/32 x 1/2 B |
75645 75646 |
| 11/32″ x 43/64″ | .335 x .669 |
8.5mm x 17mm |
76350 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. |
F, A, H F, A, H |
Die 11/32 x 43/64 A Die 11/32 x 43/64 B |
76302 76303 |
| 23/64″ x 17/32″ | .354 x .531 |
9mm x 13.5mm |
76351 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 1/4 (.250) |
F, A, H F, A, H |
Die 23/64 x 17/32 A Die 23/64 x 17/32 B |
76304 76305 |
| 3/8″ x 19/32″ | .394 x .591 |
10mm x 15mm |
76352 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 1/4 (.250) |
F, A, H F, A, H |
Die 3/8 x 19/32 A Die 3/8 x 19/32 B |
76306 76307 |
| 7/16″ x 5/8″ | .433 x .625 |
11mm x 15.9mm |
76353 |
>5/64 (.078) to 1/8 (.125) 5/64 (.078) to 3/8 (.375) 5/16 (.312) max. |
F, A, H F, A, H C |
Die 7/16 x 5/8 A Die 7/16 x 5/8 B Die 7/16 x 5/8 C |
75647 75648 75655 |
| 1/2″ x 3/4″ | .512 x .750 |
13mm x 19mm |
76354 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 3/8 (.375) 14 to 3 GA. |
F, A, H F, A, H C |
Die 1/2 x 3/4 A Die 1/2 x 3/4 B Die 1/2 x 3/4 C |
75649 75650 75963 |
| 9/16″ x 13/16″ | .551 x .827 |
14mm x 21mm |
76355 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 3/8 (.375) 5/16 (.312) max. |
F, A, H F, A, H C |
Die 9/16 x 13/16 A Die 9/16 x 13/16 B Die 9/16 x 13/16 C |
75651 75652 75964 |

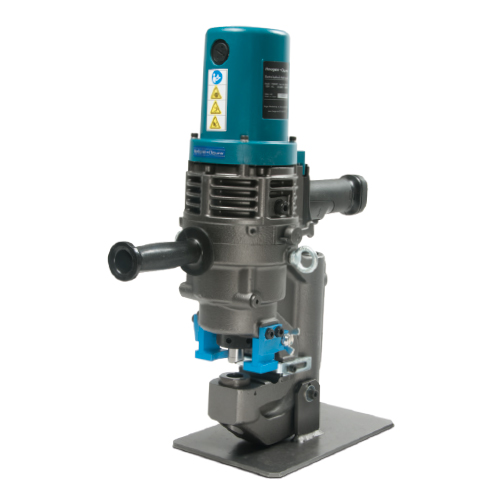

Punch-Pro™ — MODEL 75006PR
| ROUND PUNCH | MATERIAL | DIE | |||||
|---|---|---|---|---|---|---|---|
| Size | Part No. | Thickness | Style | Size | Part No. | ||
| Nominal | Actual | Metric | |||||
| 7/16″ | .433 | 11mm | 76359 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 3/8 (.375) 5/16 (.312) Max. |
F, A, H F, A, H C |
Die 7/16 SA Die 7/16 SB Die 7/16 CC |
75578 75579 75616 |
| 1/2″ | .512 | 13mm | 76360 | 5/64 (.078) to .118 14 to 12 GA. 5/64 (.078) to 3/8 (.375) 5/16 (.312) Max. |
F, A, H F, A, H C |
Die 1/2 SA Die 1/2 SB Die 1/2 CC |
75581 75582 75617 |
| 7/32″ | .551 | 14mm | 76361 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 1/2 (.512) 5/16 (.312) Max. |
F, A, H F, A, H F, A, H |
Die 7/32 SA |
75584 75585 75618 |
| 15/64″ | .625 | 15.9mm | 76362 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 1/2 (.512) 5/16 (.312) Max. |
F, A, H F, A, H C |
Die 15/64 SA |
75588 75589 75620 |
| 15/64″ | .688 | 17.5mm | 76363 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 1/2 (.512) 5/16 (.312) Max. |
F, A, H F, A, H C |
Die 15/64 SB |
75592 75593 75622 |
| 1/4″ | .750 | 19mm | 76364 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 1/2 (.512) 5/16 (.312) Max. |
F, A, H F, A, H C |
Die 1/4 SA |
75596 75597 75624 |
| 1/4″ | .787 | 20mm | 76365 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 1/2 (.512) 5/16 (.312) Max. |
F, A, H F, A, H C |
Die 1/4 SB |
75600 75601 75626 |
| 5/16″ | .812 | 20.6mm | 76366 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 1/2 (.512) 5/16 (.312) Max. |
F, A, H F, A, H C |
Die 5/16 SA |
75604 75605 75628 |
| 5/16″ | .875 | 22.2mm | 76367 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 1/2 (.512) 5/16 (.312) Max. |
F, A, H F, A, H C |
Die 5/16 SB |
75608 75609 75630 |
| 11/32″ | .938 | 23.8mm | 76368 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 15/32 (.472) |
F, A, H F, A, H C |
Die 11/32 SA |
75612 75613 |
| OBLONG PUNCH | MATERIAL | DIE | |||||
|---|---|---|---|---|---|---|---|
| Size | Part No. | Thickness | Style | Size | Part No. | ||
| Nominal | Actual | Metric | |||||
| 7/16″ x 5/8″ |
.433 x .625 |
11mm x 15.9mm |
76369 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 3/8 (.375) 5/16 (.312) Max. |
F, A, H F, A, H C |
Die 7/16 x 5/8 A Die 7/16 x 5/8 B Die 7/16 x 5/8 CC |
75709 75710 75723 |
| 1/2″ x 3/4″ |
512 x .750 |
13mm x 19mm |
76370 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 1/2 (.512) 5/16 (.312) Max. |
F, A, H F, A, H C |
Die 1/2 x 3/4 A Die 1/2 x 3/4 B Die 1/2 x 3/4 CC |
75712 75713 75724 |
| 9/16″ x 13/16″ |
.551 x .827 |
14mm x 20.6mm |
76371 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 1/2 (.512) 5/16 (.312) Max. |
F, A, H F, A, H C |
Die 9/16 x 13/16 A Die 9/16 x 13/16 B Die 9/16 x 13/16 CC |
75715 75716 75725 |
| 11/16″ x 13/16″ |
.688 x .827 |
17.5mm x 20.6mm |
76372 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 1/2 (.512) 5/16 (.312) Max. |
F, A, H F, A, H C |
Die 11/16 x 13/16 A Die 11/16 x 13/16 B Die 11/16 x 13/16 CC |
75719 75720 75727 |

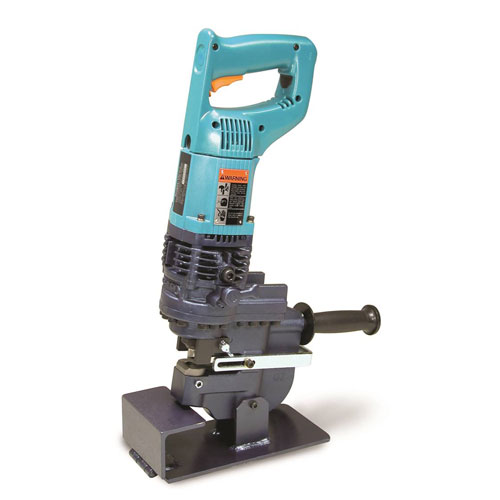

Punch-Pro™ — MODEL 76004PR
| ROUND PUNCH | MATERIAL | DIE | |||||
|---|---|---|---|---|---|---|---|
| Size | Part No. | Thickness | Style | Size | Part No. | ||
| Nominal | Actual | Metric | |||||
| 15/64″ | .234 | 6mm | 76334 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 1/4 (.250) |
F, A, H F, A, H |
Die 15/64 SA Die 15/64 SB |
76308 76309 |
| 1/4″ | .256 | 6.5mm | 76335 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 1/4 (.250) |
F, A, H F, A, H |
Die 1/4 SA Die 1/4 SB |
76310 76311 |
| 5/16″ | .315 | 8mm | 76336 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 1/4 (.250) |
F, A, H F, A, H |
Die 5/16 SA Die 5/16 SB |
76312 76313 |
| 11/32″ | .335 | 8.5mm | 76337 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 1/4 (.250) |
F, A, H F, A, H |
Die 11/32 SA Die 11/32 SB |
76314 76315 |
| 3/8″ | .394 | 10mm | 76338 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 1/4 (.250) 5/16 (.312) max. |
F, A, H F, A, H C |
Die 3/8 SA Die 3/8 SB Die 3/8 C |
76316 76317 75450 |
| 7/16″ | .433 | 11mm | 76339 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 3/8 (.375) 5/16 (.312) max. |
F, A, H F, A, H C |
Die 7/16 SA Die 7/16 SB Die 7/16 C |
76318 76319 75451 |
| 15/32″ | .472 | 12mm | 75910 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA. 5/64 (.078) to 3/8 (.375) |
F, A, H F, A, H |
Die 15/32 SA Die 15/32 SB |
75451 75913 |
| 1/2″ | .512 | 13mm | 76340 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 3/8 (.375) 5/16 (.312) max. |
F, A, H F, A, H C |
Die 1/2 SA Die 1/2 SB Die 1/2 C |
76320 76321 75452 |
| 9/16″ | .551 | 14mm | 76341 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 3/8 (.375) 5/16 (.312) max. |
F, A, H F, A, H C |
Die 9/16 SA Die 9/16 SB Die 9/16 C |
75612 75613 75453 |
| 19/32″ | .591 | 15mm | 76342 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 3/8 (.375) |
F, A, H F, A, H |
Die 19/32 SA Die 19/32 SB |
76324 76325 |
| 5/8″ | .625 | 15.9mm | 76343 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 3/8 (.375) 5/16 (.312) max. |
F, A, H F, A, H C |
Die 5/8 SA Die 5/8 SB Die 5/8 C |
76326 76327 75959 |
| 11/16″ | .688 | 17.5mm | 76344 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 3/8 (.375) 5/16 (.312) max. |
F, A, H F, A, H C |
Die 11/16 SA Die 11/16 SB Die 11/16 C |
76328 76329 75960 |
| 23/32″ | .709 | 18mm | 75911 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 3/8 (.375) |
F, A, H F, A, H |
Die 23/32 SA Die 23/32 SB |
75915 75916 |
| 3/4″ | .750 | 19mm | 76345 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 3/8 (.375) 5/16 (.312) max. |
F, A, H F, A, H C |
Die 3/4 SA Die 3/4 SB Die 3/4 C |
76330 76331 75961 |
| 25/32″ | .787 | 20mm | 76346 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 3/8 (.375) 5/16 (.312) max. |
F, A, H F, A, H C |
Die 25/32 SA Die 25/32 SB Die 25/32 C |
76332 76333 75962 |
| OBLONG PUNCH | MATERIAL | DIE | |||||
|---|---|---|---|---|---|---|---|
| Size | Part No. | Thickness | Style | Size | Part No. | ||
| Nominal | Actual | Metric | |||||
| 1/4″ x 3/8″” |
.256 x .394 |
6.5mm x 10mm |
76347 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 1/4 (.250) |
F, A, H F, A, H |
Die 1/4 x 3/8 A Die 1/4 x 3/8 B |
76300 76301 |
| 1/4″ x 1/2″ |
.256 x .512 |
6.5mm x 13mm |
76348 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 1/4 (.250) |
F, A, H F, A, H |
Die 1/4 x 1/2 A Die 1/4 x 1/2 B |
75643 75644c |
| 11/32″ x 1/2″ |
.335 x .512 |
8.5mm x 13mm |
76349 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 1/4 (.250) |
F, A, H F, A, H |
Die 11/32 x 1/2 A Die 11/32 x 1/2 B |
75645 75646 |
| 11/32″ x 43/64″ |
.335 x .669 |
8.5mm x 17mm |
76350 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 1/4 (.250) |
F, A, H F, A, H |
Die 11/32 x 43/64 A Die 11/32 x 43/64 B |
76302 76303 |
| 23/64″ x 17/32″ |
.354 x .531 |
9mm x 13.5mm |
76351 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 1/4 (.250) |
F, A, H F, A, H |
Die 23/64 x 17/32 A Die 23/64 x 17/32 B |
76304 76305 |
| 3/8″ x 19/32″ |
.394 x .591 |
10mm x 15mm |
76352 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 1/4 (.250) |
F, A, H F, A, H |
Die 3/8 x 19/32 A Die 3/8 x 19/32 B |
76306 76307 |
| 7/16″ x 5/8″ |
.433 x .625 |
11mm x 15.9mm |
76353 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 3/8 (.375) 5/16 (.312) max. |
F, A, H C
|
Die 7/16 x 5/8 A Die 7/16 x 5/8 B Die 7/16 x 5/8 C |
75647 75648 75655 |
| 1/2″ x 3/4″ |
.512 x .750 |
13mm x 19mm |
76354 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 3/8 (.375) 5/16 (.312) max. |
F, A, H C |
Die 1/2 x 3/4 A Die 1/2 x 3/4 B Die 1/2 x 3/4 C |
75649 75650 75963 |
| 9/16″ x 13/16″ |
.551 x .827 |
14mm x 21mm |
76355 |
5/64 (.078) to 1/8 (.125) 5/64 (.078) to 3/8 (.375) 5/16 (.312) max. |
F, A, H C |
Die 9/16 x 13/16 A Die 9/16 x 13/16 B Die 9/16 x 13/16 C |
75651 75652 75964 |
