Rotaloc & Rotoloc Plus Annular Cutters & Kits

Rotaloc Plus™ Annular Cutters 1″ D.O.C

for models HMD150 and HMD130 only

Rotaloc Plus (INCH)
Cutter Dia.
(Inches)		 Decimal
Equiv.		 Part No.
See Chart for Pilot
7/16" .4375 17814*
1/2" .5000 17816
17/32" .5313 17817
9/16" .5625 17818
5/8" .6250 17820
11/16" .6875 17822
3/4" .7500 17824
13/16" .8125 17826
7/8" .8750 17828
15/16" .9375 17830
1" 1.0000 17832
1-1/16" 1.0625 17834
1-1/8" 1.1250 17836
1-3/16" 1.1875 17838
1-1/4" 1.2500 17840
1-5/16" 1.3125 17842
1-3/8" 1.3750 17844
Rotaloc Plus (METRIC)
Cutter Dia.
(Metric)		 Decimal
Equiv.		 Part No.
See Chart for Pilot
12mm .4724 17900
13mm .5118 17902
14mm .5512 17904
15mm .5906 17906
16mm .6299 17908
17mm .6693 17910
17.5mm .6890 17911
18mm .7087 17912
19mm .7480 17914
20mm .7874 17916
21mm .8268 17918
22mm .8661 17920
23mm .9055 17922
24mm .9449 17924
24.5mm .9645 17925
25mm .9843 17926
26mm 1.0236 17928
26.5mm 1.0433 17929
27mm 1.0630 17930
28mm 1.1024 17932
29mm 1.1417 17934
30mm 1.1811 17936
31mm 1.2205 17938
32mm 1.2598 17940
33mm 1.2992 17942
34mm 1.3386 17944
35mm 1.3779 17946

Rotaloc Annular Cutters 3/4″ D.O.C

for model HMD115 only

Rotaloc (INCH)
Cutter Dia.
(Inches)		 Carbide Tip M42 HSS
See Chart for Pilot
1/2" .... 17116
9/16" 18-17118 17118
5/8" 18-17120 17120
11/16" 18-17122 17122
3/4" 18-17124 17124
13/16" 18-17126 17126
7/8" 18-17128 17128
15/16" 18-17130 17130
1" 18-17132 17132
1-1/16" 18-17134 17134
Rotaloc (METRIC)
Cutter Dia.
(Metric)		 Carbide Tip M42 HSS
See Chart for Pilot
12mm .... 17300
13mm .... 17302
14mm 18-17304 17304
15mm 18-17306 17306
16mm 18-17308 17308
17mm 18-17310 17310
18mm 18-17312 17312
20mm 18-17316 17316
22mm 18-17320 17320
24mm 18-17324 17324
26mm 18-17328 17328

Rotaloc Plus™ Annular Cutters Kits

for HMD115 only

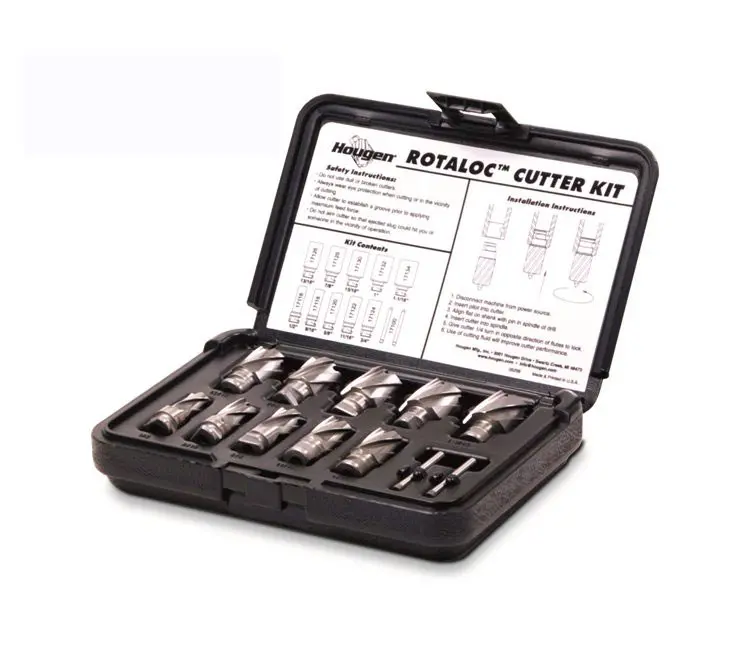

Rotaloc Cutter Kits
Part No. D.O.Cc Description
17001
(HMD115)		 3/4" Contains (10) M42 cutters, plus (2) Pilots
17700
(HMD115)		 3/4" Contains (3) M42 cutters, 1/2, 5/8, 3/4" dia, plus (3) Pilots
17701
(HMD115)		 3/4" Contains (3) M42 cutters, 9/16, 11/16, 13/16" dia, plus (3) Pilots

Rotaloc Plus™ Annular Cutter kits

for HMD150 and HMD130 only

Rotaloc Plus™ Cutter Kits (HMD130 only)
Part No. Description
17802 Kit contains (3) cutters, 1" D.O.C. - 1/2, 5/8, 3/4" dia, plus (3) Pilots in a sturdy plastic case.
17803 Kit contains (3) cutters, 1" D.O.C. - 9/16, 11/16, 13/16" dia, plus (3) Pilots in a sturdy plastic case.
17805 Kit contains (3) cutters, 1" D.O.C. - 14mm, 16mm, 18mm dia, plus (3) Pilots in a sturdy plastic case.
17808 Kit contains (14) cutters: 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1-1/16, 1-1/8, 1-1/4 & 1-3/8" RotaLoc Plus cutters and two pilots (17810)

Rotaloc Pilots

for HMD115, HMD150, and HMD130 only

Pilots for HMD
Part No. Description
17100 Pilot for HMD115
17810 Pilot for HMD150 & HMD130
