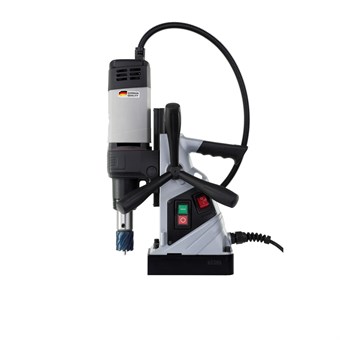

KA35 – MAX DEPTH 8″
Max Diameter

Max Depth
Advantages of new twin rail slide system “heavy-duty” over machines with old dovetail system. blackdur hardened sliding rail. This results to more than 5 times longer lifetime than conventional dovetail slides.
- Core drilling Diameter 12 – 35 mm
- Twist drilling Diameter 3 – 18 mm
- Countersinking Diameter 10 – 30 mm
- Stroke 4-23/32″
$1,499.00
Whether you're drilling onsite in B.C., fabricating in Alberta, or maintaining infrastructure in Ontario, we deliver the tools you need, on Canadian time and Canadian terms.
Specifications
Advantages of New Twin Rail Slide System “HEAVY-DUTY” over machines with old dovetail system.
- BLACKDUR hardened sliding rail. This results to more than 5 times longer lifetime than conventional dovetail slides.
- Two-way sliding rails, which make the motor height be adjustable according to the different requirement. Stroke up to 210 mm. Rail position function, which can make the motor stop at any position to prevent selfrig decline and damage cutter.
- Design of internal self-lubricating function ensures extended life of the gear.
- Tilt protection design for motor air inlet avoid liquid or debris falling into the inside of he motor.
- Automatic internal cooling system. The external cooling ring design prevents cooling liquid overflow into the gear box.
- Ergonomically designed handles for excellent control of the rotary movement.
- Open handle. Ideal for light machines. The machine can be moved easily on the surface.
- Design of overall aerial lifting holes and safety rope holes guarante double protection for the safety of the aerial personal and equipment.
- The design of the entire body is designed for high rigidity to improve drilling quality.
- Magnetic bottom wear design, which reduces the wear of the magnet bottom and extend service life. Magnetic base with maximum magnetic adhesion up to 10 000 N ensure the safety and reliability during drilling operations.
- Core drilling Diameter 12 – 35 mm
- Twist drilling Diameter 3 – 18 mm
- Countersinking Diameter 10 – 30 mm
- Stroke 4-23/32″
Cutters
“12,000-Series” Annular Cutters
The original mag drill annular cutter, Hougen’s "12,000-Series" are the standard for hole making. Sizes are available up to 3-1/16" in diameter and up to 6" depth of cut
“12,000-Series” TiN Coated Cutters
TiN Coated cutters increase tool life, reduce friction, and operate at cooler temperatures. For materials up to 325 BHN or gummy materials. Special Sizes and coatings are available...
Copperhead™ Carbide Tip Cutters
Carbide Tipped Cutters for extended tool life in abrasive & tough materials. Up to 6" deep and diameters to 3".
Pilots
Sometimes things happen. These tools allow you to take an existing hole and re-drill it to the larger correct size
Accessories
RotaMagic™ Super Concentrated Cutting Fluid
RotaMagic™ is water soluble, biodegradable cutting lubricant that extends tool life and improves cutter performance.
Slick-Stik™ Lubricant
Stick lubricant for easy application, providing superior adhesion to the tool, assuring thorough coverage and increased tool life.
RotaFoam™ Cutting Fluid
Extremely heavy-duty, high performance foamy lubricant for all types of metals and metal working applications.
RotaGel™ Cutting Lube
Environmentally friendly lubricant for all types of metals and metal working applications. Biodegradable & Non-Toxic.
