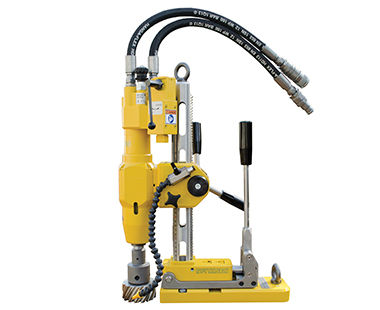

Portable Hydraulic Magnetic Drill
Max Diameter
Max Depth
2 1345 0010 & 2 1345 0020 – Ideal for use in Ex Zones and subsea applications
Whether you're drilling onsite in B.C., fabricating in Alberta, or maintaining infrastructure in Ontario, we deliver the tools you need, on Canadian time and Canadian terms.
Specifications
| Motor Power (Hydraulic) | 3.4 HP |
|---|---|
| Weight | 50 lbs. |
| Stroke | 12″ |
| Hole Capacity | 4″ dia |
| Twist Drill Capacity | 1-1/4″ dia. |
| Tapping Capacity | 1-1/8″ dia. |
| No Load Speed, Variable | 40-250 RPM |
| Hydraulic Supply | 5.25 to 6 GPM @ 2000 PSI (140 Bar) |
| Magnetic Base Size | 11-11/16″ L x 4″ W (2 1345 0010) 12-4/5″ L x 7-1/2″ W (2 1345 0020) |
| Dimensions | 21-1/2″H x 15-7/16″ L x 7-3/4″W |
| Magnetic Force (3/8″ plate) | 1874 lbs. (2 1345 0010) 3306 lbs. (2 1345 0020) |
| Spindle | MT3 |
| ATEX Certification | II2GExhIIBT5Gb |
| Wide Base Model Available | Order Model 2 1345 0020 |
Cutters
“12,000-Series” Annular Cutters
The original mag drill annular cutter, Hougen’s "12,000-Series" are the standard for hole making. Sizes are available up to 3-1/16" in diameter and up to 6" depth of cut
“12,000-Series” TiN Coated Cutters
TiN Coated cutters increase tool life, reduce friction, and operate at cooler temperatures. For materials up to 325 BHN or gummy materials. Special Sizes and coatings are available...
Copperhead™ Carbide Tip Cutters
Carbide Tipped Cutters for extended tool life in abrasive & tough materials. Up to 6" deep and diameters to 3".
Pilots
Sometimes things happen. These tools allow you to take an existing hole and re-drill it to the larger correct size
Accessories
RotaMagic™ Super Concentrated Cutting Fluid
RotaMagic™ is water soluble, biodegradable cutting lubricant that extends tool life and improves cutter performance.
Slick-Stik™ Lubricant
Stick lubricant for easy application, providing superior adhesion to the tool, assuring thorough coverage and increased tool life.
RotaFoam™ Cutting Fluid
Extremely heavy-duty, high performance foamy lubricant for all types of metals and metal working applications.
RotaGel™ Cutting Lube
Environmentally friendly lubricant for all types of metals and metal working applications. Biodegradable & Non-Toxic.
OP Manual
Videos - Learn More
Fabricator’s Kits
The All-In-One Solution to Start Drilling Holes
