KATV140

$7,899.00

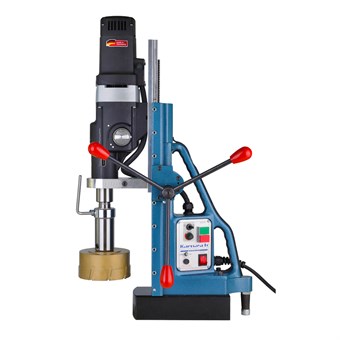

Hole cutting machine katv 140 blue-mag with heavy-duty twin rail slide system, variable speed and sensor advantages up to 10 times better stability. Extremely tight tolerances of the slide through the round twin rail system. The slide has no contact with the main body of the machine.
  • Core drilling Diameter 12 – 140 mm
  • Twist drilling Diameter 3 – 50 mm
  • Countersinking Diameter 10 – 80 mm
  • Reaming Diameter 6 – 52 mm
  • Tapping Diameter 6 – 44 mm
  • Stroke 12-19/32″
SKU: KATV140 Categories: ,

Description

Hole cutting machine KATV 140 Blue-Mag with HEAVY-DUTY Twin Rail Slide System, variable speed and Sensor

Advantages

  • Up to 10 times better stability.
  • Extremely tight tolerances of the slide through the round Twin Rail system.
  • The slide has no contact with the main body of the machine. The whole construction is
    connected only by the highly precise and extremely stable rail system.

    • Reduced friction / less wear
    • Low maintenance / better reliability

Result

  • Improved cutter life
  • Reduced cutter breakage
  • Improved hole tolerances
  • Improved hole surface quality
  • Up to 110 mm cutting depth possible already with small machines

THE NEW MAG-TEC SENSOR:

The sensor detects how well the magnet keeps the machine on the ground.

  • It is directly connected to the engine.
  • If the sensor is illuminating “RED” , the ground is dirty (rust, varnish residues, chips), the material is thinner than 6 mm or the feed rate is to high.
  • The machine does not have a safe stand. The engine does not start or turns off.
  • If the sensor is illuminating “GREEN”, the magnetic holding force is optimal and the use of the machine is safe.
  • Core drilling Diameter 12 – 140 mm
  • Twist drilling Diameter 3 – 50 mm
  • Countersinking Diameter 10 – 80 mm
  • Reaming Diameter 6 – 52 mm
  • Tapping Diameter 6 – 44 mm
  • Stroke 12-19/32″
