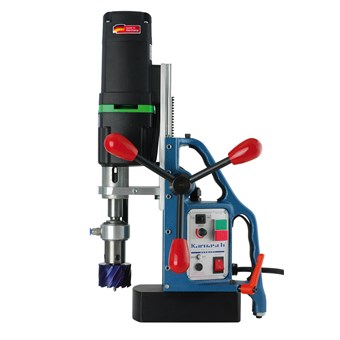

Description
Advantages of New Twin Rail Slide System “HEAVY-DUTY” over machines with old dovetail system.
- Up to 10 times better stability.
- Extremely tight tolerances of the slide through the round Twin Rail system.
- The slide has no contact with the main body of the machine. The whole construction is
connected only by the highly precise and extremely stable rail system.- Reduced friction / less wear
- Low maintenance / better reliability
THE NEW MAG-TEC SENSOR:
The sensor detects how well the magnet keeps the machine on the ground.
- It is directly connected to the engine.
- If the sensor is illuminating “RED” , the ground is dirty (rust, varnish residues, chips), the material is thinner than 6 mm or the feed rate is to high.
- The machine does not have a safe stand. The engine does not start or turns off.
- If the sensor is illuminating “GREEN”, the magnetic holding force is optimal and the use of the machine is safe
- Core drilling Diameter 12 – 55 mm
- Twist drilling Diameter 3 – 23 mm
- Countersinking Diameter 10 – 40 mm
- Reaming Diameter 6 – 20 mm
- Tapping Diameter 6 – 20 mm
- Stroke 7-11/16″
