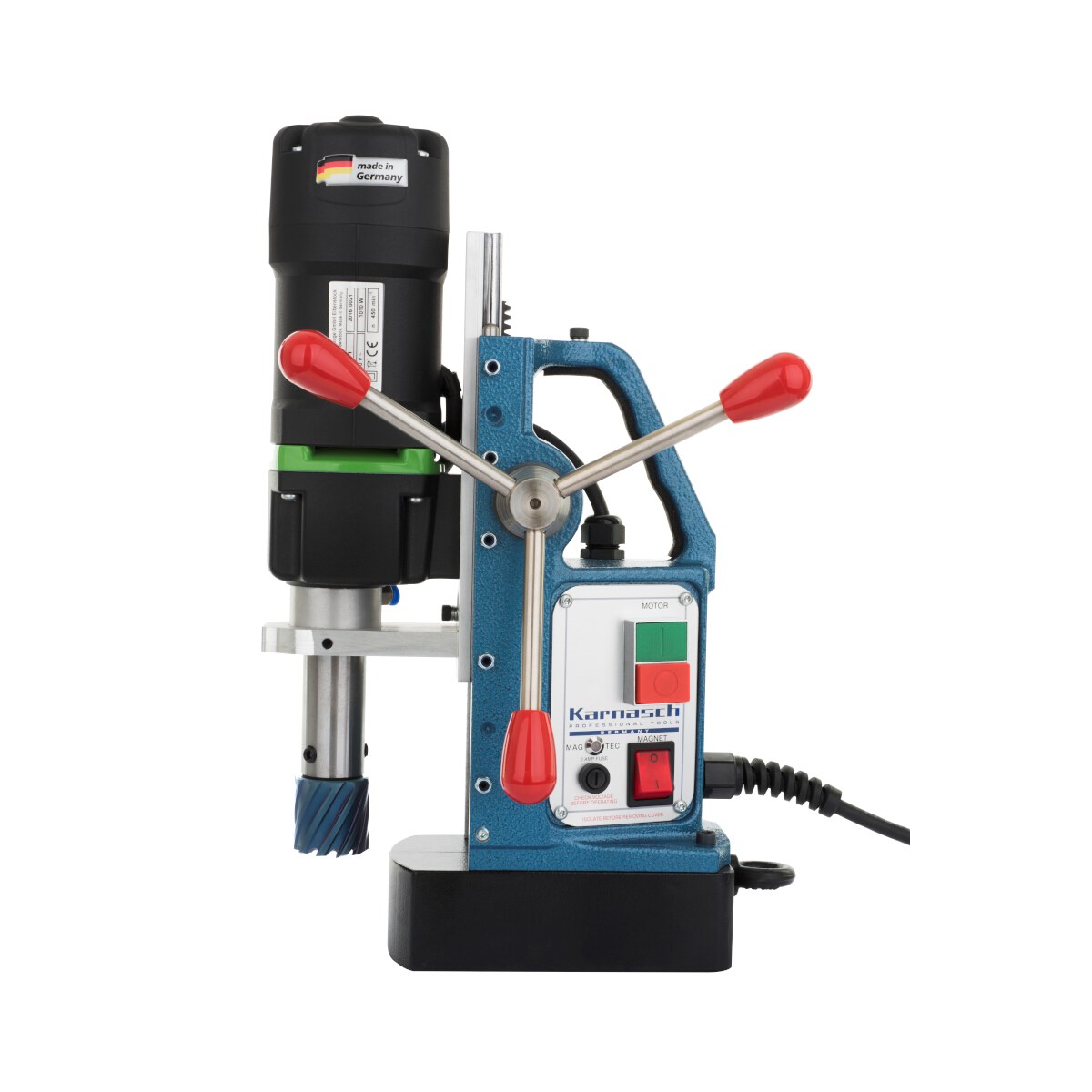

KA38
Max Diameter
Max Depth
Advantages of new twin rail slide system “heavy-duty” over machines with old dovetail system. Up to 10 times better stability. Extremely tight tolerances of the slide through the round twin rail system. The slide has no contact with the main body of the machine.
$1,999.00
Whether you're drilling onsite in B.C., fabricating in Alberta, or maintaining infrastructure in Ontario, we deliver the tools you need, on Canadian time and Canadian terms.
Specifications
Advantages of New Twin Rail Slide System “HEAVY-DUTY” over machines with old dovetail system.
- Up to 10 times better stability.
- Extremely tight tolerances of the slide through the round Twin Rail system.
- The slide has no contact with the main body of the machine. The whole construction is
connected only by the highly precise and extremely stable rail system.- Reduced friction / less wear
- Low maintenance / better reliability
Result:
- Improved cutter life
- Reduced cutter breakage
- Improved hole tolerances
- Improved hole surface quality
- Up to 110 mm cutting depth possible already with small machines
THE NEW MAG-TEC SENSOR:
The sensor detects how well the magnet keeps the machine on the ground.
- It is directly connected to the engine.
- If the sensor is illuminating “RED” , the ground is dirty (rust, varnish residues, chips), the material is thinner than 6 mm or the feed rate is to high.
- The machine does not have a safe stand. The engine does not start or turns off.
- If the sensor is illuminating “GREEN”, the magnetic holding force is optimal and the use of the machine is safe.
Core drilling Diameter 12 – 38 mm
Twist drilling Diameter 3 – 18 mm
Countersinking Diameter 10 – 30 mm
Cutters
“12,000-Series” Annular Cutters
The original mag drill annular cutter, Hougen’s "12,000-Series" are the standard for hole making. Sizes are available up to 3-1/16" in diameter and up to 6" depth of cut
“12,000-Series” TiN Coated Cutters
TiN Coated cutters increase tool life, reduce friction, and operate at cooler temperatures. For materials up to 325 BHN or gummy materials. Special Sizes and coatings are available...
Copperhead™ Carbide Tip Cutters
Carbide Tipped Cutters for extended tool life in abrasive & tough materials. Up to 6" deep and diameters to 3".
Pilots
Sometimes things happen. These tools allow you to take an existing hole and re-drill it to the larger correct size
Accessories
RotaMagic™ Super Concentrated Cutting Fluid
RotaMagic™ is water soluble, biodegradable cutting lubricant that extends tool life and improves cutter performance.
Slick-Stik™ Lubricant
Stick lubricant for easy application, providing superior adhesion to the tool, assuring thorough coverage and increased tool life.
RotaFoam™ Cutting Fluid
Extremely heavy-duty, high performance foamy lubricant for all types of metals and metal working applications.
RotaGel™ Cutting Lube
Environmentally friendly lubricant for all types of metals and metal working applications. Biodegradable & Non-Toxic.
