Description
DETAILS

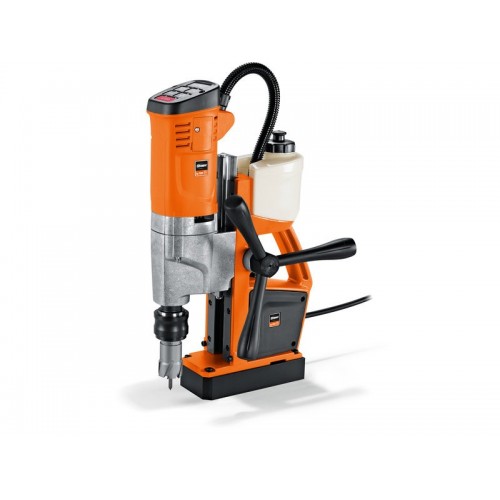

- Extremely wear-resistant tool concept with swivel-mounted motor cable protection hose for tough conditions in industry and skilled trades.
- Perfect power-to-weight ratio, thanks to compact, weight-optimized design and FEIN 1 100 W high-performance motor with tacho electronics for high speed stability for reliable and efficient operation.
- Right/left rotation, electronic speed adjustment and 10-1/4 [260] in[mm] stroke range enable universal work applications such as core drilling, spiral drilling, tapping as well as countersinking and reaming.
- Small and lightweight.
- Simple and error-proof control concept in the operator’s field of view.
- Easy to read convenient magnetic holding force display.
- High magnetic holding force.
- Motion sensor.
- Additional magnet switch in the drill stand.
- Integrated coolant tank.
- Hand feed wheel can be mounted on either side.
- “Memory function” speed storage.
TECHNICAL DATA
TECHNICAL DATA
Power consumption
1,100 W
Power output
550 W
Full load speed
130 – 520 rpm
Carbide cutter max. dia.
1-3/8 [35] in[mm]
HSS cutter max. dia.
1-3/8 [35] in[mm]
Cutter max. drilling depth
2 [50] in[mm]
Twist drill max. dia.
5/8 [16] in[mm]
Tapping
M 14
Max. countersinking dia.
1-1/4 [31] in[mm]
Reaming max. dia.
5/8 [16] in[mm]
Cutter holder
3/4″ straight shank
Cutter change
tool-free
Stroke
5-5/16 [135] in[mm]
Total stroke range
10-1/4 [260] in[mm]
Magnetic holding force
2248 [10,000] lbs[N]
Cable with plug
13 [4] ft[m]
Weight
23.59 lbs
VIBRATION AND SOUND EMISSION VALUES
Sound pressure level LpA
82,3 dB
Measurement uncertainty of the measured value KpA
5 dB
Sound power level LWA
93,3 dB
Measurement uncertainty of the measured value KWA
5 dB
Peak sound value LpCpeak
95,9 dB
Measurement uncertainty of the measured value KpCpeak
5 dB
Vibration value 1 αhv 3-way
αh,D <2,5 m/s²
Measurement uncertainty of the measured value
