Description
DETAILS

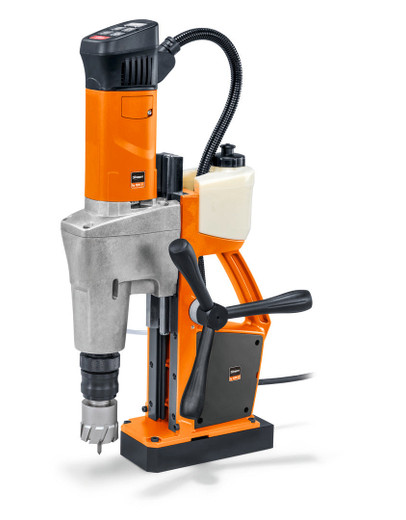

- Compact with high functionality for universal use on the construction site and in the workshop.
- Simple and error-proof control concept in the operator’s field of view.
- Double drill motor guides enable use of the longest annular cutters.
- Reversible
- Electronic speed control.
- High-power motor with stable speed.
- High magnetic holding force.
- Easy to read convenient magnetic holding force display.
- Integrated coolant tank.
- Hand feed wheel can be mounted on either side.
- MT3 interface.
TECHNICAL DATA
TECHNICAL DATA
Power consumption
1,200 W
Power output
610 W
Load speed: 1st gear
130 – 260 rpm
Load speed: 2nd gear
260 – 520 rpm
Tool mount
MT 3
Carbide cutter max. dia.
2 [50] in[mm]
HSS cutter max. dia.
1-5/8 [40] in[mm]
Cutter max. drilling depth
2 [50] in[mm]
Twist drill max. dia.
7/8 [23] in[mm]
Tapping
M 16
Max. countersinking dia.
2 [50] in[mm]
Reaming max. dia.
7/8 [23] in[mm]
Cutter holder
3/4″ straight shank
Cutter change
tool-free
Stroke
5-11/16 [145] in[mm]
Total stroke range
12-3/8 [315] in[mm]
Cable with plug
13 [4] ft[m]
VIBRATION AND SOUND EMISSION VALUES
Sound pressure level LpA
82,1 dB
Measurement uncertainty of the measured value KpA
5 dB
Sound power level LWA
93,1 dB
Measurement uncertainty of the measured value KWA
5 dB
Peak sound value LpCpeak
96,2 dB
Measurement uncertainty of the measured va
