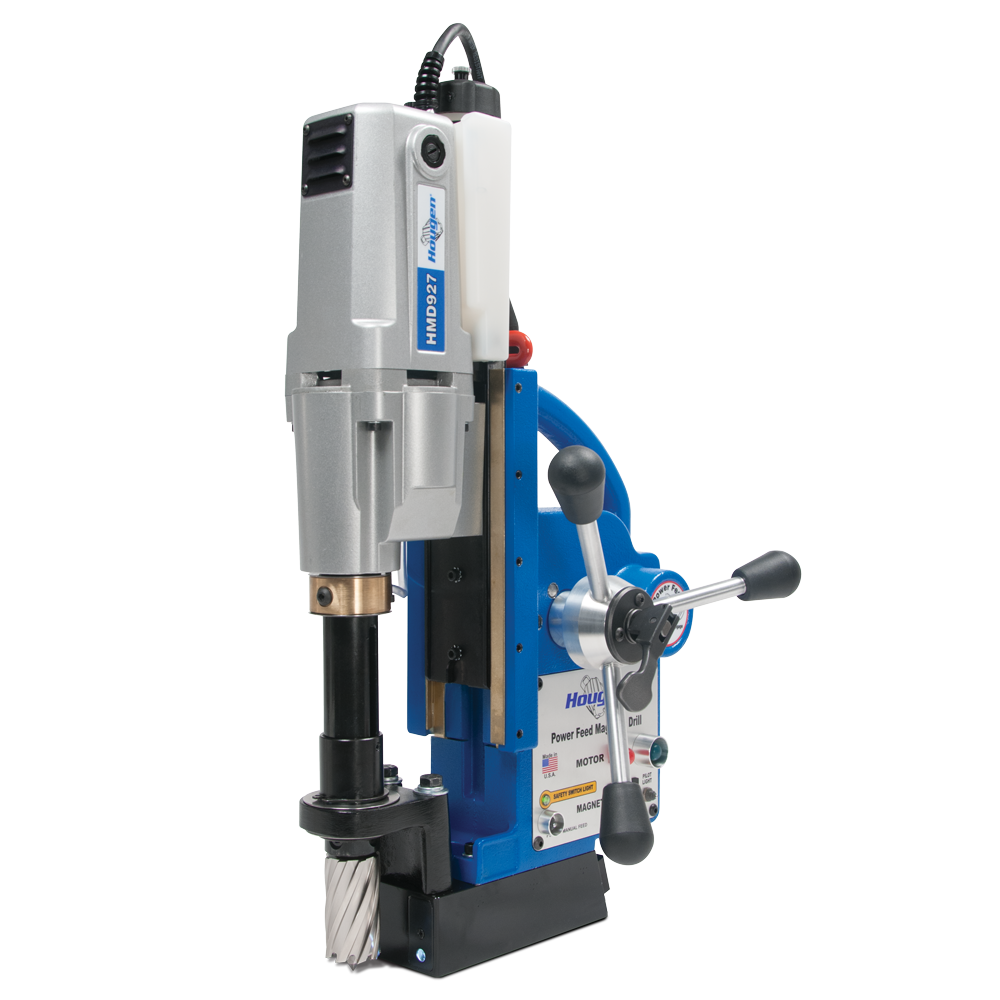

HMD927 Mag Drill – 2 Spd/Power Feed/Coolant – 115V
Max Diameter
Max Depth
A powerful two speed power feed mag drill with great power to weight ratio.
- Large 2″ x 2″ capacity
- Powerful high torque Hougen motor and gears
- Two Speed gear box – 250 & 450 RPM
- Pilot light
- Smart technology optimizes feed rate for increased tool life and excellent hole quality
- Single handle to engage power feed system
- Selectable manual/power feed mode
- Two stage magnet – 30% increase in power when motor is turned on
- Positive slug ejection
- Integrated coolant bottle
- Lift detector safety system
- Two year warranty
- Call our sales team for current promotions and sale prices
$3,705.00
Whether you're drilling onsite in B.C., fabricating in Alberta, or maintaining infrastructure in Ontario, we deliver the tools you need, on Canadian time and Canadian terms.
Specifications
| SPEC | INFO | ||
|---|---|---|---|
| Electrical System | 115V, 50/60 Hz – 10A, 1150W | ||
| Motor | 9A (115V), 250/450 RPM | ||
| Diameter | 7/16″- 1-5/8″ (12mm – 41mm) | ||
| Depth | 2″ (50mm) | ||
| Cutter/Mount | “12,000-Series” & Copperhead™ & Fusion™ cutters, 3/4″ shank | ||
| Dimensions | 22-13/16″ H x 7-11/16″ W x 14-11/16″ L (579mm H x 195mm W x 373mm L) |
||
| Swivel Area | 1-1/8″ W x 1-3/8″ L (28.5mm H x 34.9mm W) |
||
| Magnet | Base | 3-1/8″ W x 6-9/16″ L (79mm W x 167mm L) |
|
| 1″ Plate(25mm) | Dead Lift 1750 lb. (794 kg) | Drillpoint Breakaway 995 lb. (433 kg) |
|
| 3/8″ Plate(9.5mm) | 1310 lb. (594 kg) | 710 lb. (322 kg) | |
| Magnet (Swivel) | 1″ Plate(25mm) | Dead Lift 1340 lb. (608 kg) |
Drillpoint Breakaway Forward – 695 lb. (315 kg) Back – 835 lb. (379 kg) |
| 3/8″ Plate(9.5mm) | 1015 lb. (460 kg) | Forward – 503 lb. (228 kg) Back – 605 (274 kg) |
|
| Weight | 43 lb. (19.5 kg) • Shipping 56 lb (25.4 kg) | ||
| Weight (Swivel) | 46 lb. (25.4 kg) • Shipping 59 lb (26.8 kg) | ||
| Need annular cutters for this mag drill? Click here to view! | |||
Models
| PART NO. | DESCRIPTION | VOLTAGE | COOLANT BOTTLE | CSA |
|---|---|---|---|---|
| 0927102 | HMD927 | 115V | X | X |
Cutters
“12,000-Series” Annular Cutters
The original mag drill annular cutter, Hougen’s "12,000-Series" are the standard for hole making. Sizes are available up to 3-1/16" in diameter and up to 6" depth of cut
“12,000-Series” TiN Coated Cutters
TiN Coated cutters increase tool life, reduce friction, and operate at cooler temperatures. For materials up to 325 BHN or gummy materials. Special Sizes and coatings are available...
Copperhead™ Carbide Tip Cutters
Carbide Tipped Cutters for extended tool life in abrasive & tough materials. Up to 6" deep and diameters to 3".
Pilots
Sometimes things happen. These tools allow you to take an existing hole and re-drill it to the larger correct size
Accessories
RotaMagic™ Super Concentrated Cutting Fluid
RotaMagic™ is water soluble, biodegradable cutting lubricant that extends tool life and improves cutter performance.
Slick-Stik™ Lubricant
Stick lubricant for easy application, providing superior adhesion to the tool, assuring thorough coverage and increased tool life.
RotaFoam™ Cutting Fluid
Extremely heavy-duty, high performance foamy lubricant for all types of metals and metal working applications.
RotaGel™ Cutting Lube
Environmentally friendly lubricant for all types of metals and metal working applications. Biodegradable & Non-Toxic.
