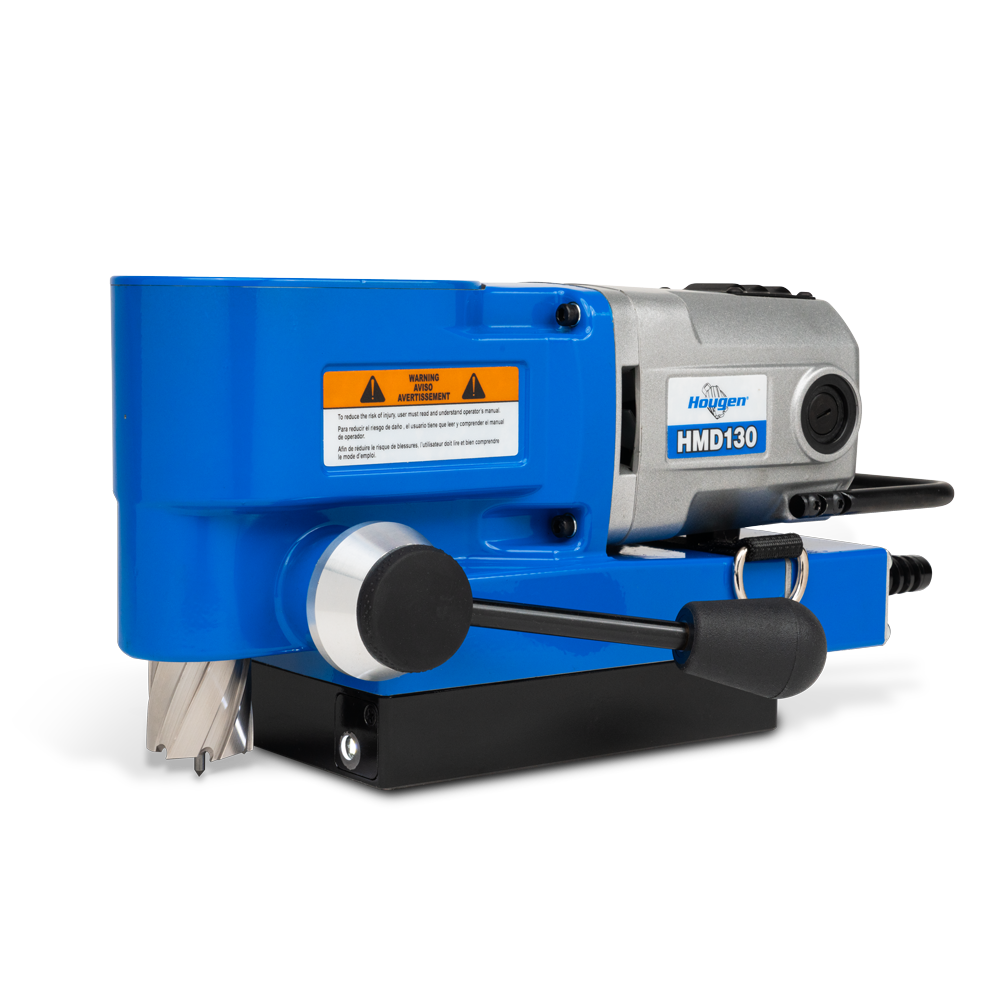

HMD130 – HOUGEN MAG DRILL – ULTRA LOW PROFILE – 115V

Name: HMD130 - HOUGEN MAG DRILL - ULTRA LOW PROFILE - 115V
SKU: HMD130
Availability: InStock

$1,787.00

April Promo! Receive a free cutter kit (Model #17802 – $177.67 Value) PLUS Free Shipping on all Hougen Mag Drill orders!

Call our sales team for current promotions and sale prices

Max Depth: 1″ (25mm)
Max Diameter: 1/2″- 1-3/8″ (12mm – 35mm)

Smaller is Better!

This Hougen magnetic drill is designed for tight spots. Just under 7″ in height and lightweight (23.8 lbs) this magnetic drill works well on truck frames & general fabrication. Pilot light for low light conditions and greater hole accuracy. Uses RotaLoc Plus™ cutters that do not require any tools for installation or removal. Carrying case included. Comes with one year warranty.

• Only 6-11/16″ high for extreme tight spots
• Lightweight at only 23.8 lbs (10.8 kg)
• Patented quill feed arbor for smooth cuts and minimal maintenance
• Uses RotaLoc Plus™ cutters which requires no tools for installation or removal
• Pilot light for low light conditions and greater hole accuracy
• Two stage magnet. Engages full power only when motor is turned on which increases magnet life
• Positive slug ejection
• High torque gearing
• Lift detector safety system
• Feed handle switches easily from side to side
• Ratchet can be used in place of feed handle
• Rear mounted controls
• Carrying case included (08498)
• One year warranty
• Hougen Part Number 0130101

SKU: HMD130 Categories: Hougen Mag Drills, Mag Drills, Main Hougen Line

Description
Additional information
Models
Cutters
Accessories
Hougen Resources
Videos

HMD130 SPECIFICATIONS
Electrical System		115V, 50/60 Hz - 9A, 1035W
Motor		8A (120V),) 450 RPM
Diameter		1/2"- 1-3/8" (12mm - 35mm)
Depth		1" (25mm)
Cutter/Mount		RotaLoc Plus™ Cutters with push & turn style shank
Dimensions		6-11/16" H x 6-3/4" W x 14-11/16" L (170mm H x 171mm W x 373mm L)
Magnet	Base	4" Wx 9" L (102mm Wx 229mm L)
	1" Plate(25mm)	Dead Lift 2165 lb.(982 kg)	Drillpoint Breakaway 735 lb. (333 kg
	3/8" Plate(9.5mm)	1200 lb. (544 kg)	500 lb. (227 kg)
Weight		23.8 lb. (10.8 kg) • Shipping 31.7 lb (14.4 kg)
Shipping Dimensions		19.5 x 17 x 8" (49.5 x 43.1 x 22.9 cm)
Need annular cutters for this mag drill? Click here to view!

Additional information

Weight	31.7 lbs
Dimensions	19.5 × 8 × 17 in
Max Depth	1"/25mm
Max Dia.	1-3/8"/35mm
Mag Drill Model	HMD130
Mag Drill Brands	Hougen Mag Drills

Models

HMD130 Models & Part No.
* All drills include: carrying case, Slick-Stik™ lubricant, & safety strap.
Part No.	Description	Voltage	CSA	Special Plug
HMD130	HMD130	115V	X

Cutters

HMD130 ANNULAR CUTTERS

RotaLoc Plus™ Cutters for the HMD130
(M42 – Stack Cut Geometry with 1″ (25mm) Depth of Cut)

By Inches
Diameter (inches)	Part No.
7/16	17814**
1/2	17816
17/32	17817
9/16	17818
5/8	17820
11/16	17822
3/4	17824
13/16	17826
7/8	17828
15/16	17830
1	17832
1-1/16	17834
1-1/8	17836
1-3/16	17838
1-1/4	17840
1-5/16	17842
1-3/8	17844
7/16″ is made from M2 HSS

Pilot
Description	Part No.
Pilot	17810

By Millimeters (mm)
Diameter (mm)	Part No.
12mm	17900
13mm	17902
14mm	17904
15mm	17906
16mm	17908
17mm	17910
17.5mm	17911
18mm	17912
19mm	17914
20mm	17916
21mm	17918
22mm	17920
23mm	17922
24mm	17924
24.5mm	17925
25mm	17926
26mm	17928
26.5mm	17929
27mm	17930
28mm	17932
29mm	17934
30mm	17936
31mm	17938
32mm	17940
33mm	17942
34mm	17944
35mm	17946

RotaLoc™ Cutters* for the HMD130
(M42 HSS- Stack-Cut Geometry with 3/4″ (19mm) Depth of Cut) – Made in USA

By Inches
Diameter (inches)	Part No.
1/2	17116
9/16	17118
5/8	17120
11/16	17122
3/4	17124
13/16	17126
7/8	17128
15/16	17130
1	17132
1-1/16	17134

By Millimeters (mm)
Diameter (mm)	Part No.
12mm	17300
13mm	17302
14mm	17304
15mm	17306
16mm	17308
17mm	17310
18mm	17312
20mm	17316
22mm	17320
24mm	17324
26mm	17328

RotaLoc Plus™ Cutter Kits*

Annular Cutter Kits
Part No.	Description	D.O.C.
17802	Fabricator’s Kit: Contains 1/2″, 5/8″, 3/4″ Rotaloc Plus Cutters & 3 Pilots	1″
17803	Fabricator’s Kit: Contains 9/16″, 11/16″, 13/16″ Rotaloc Plus Cutters & 3 Pilots	1″
17805	Fabricator’s Kit: Contains 14mm, 16mm, 18mm Rotaloc Plus Cutters & 3 Pilots	25mm

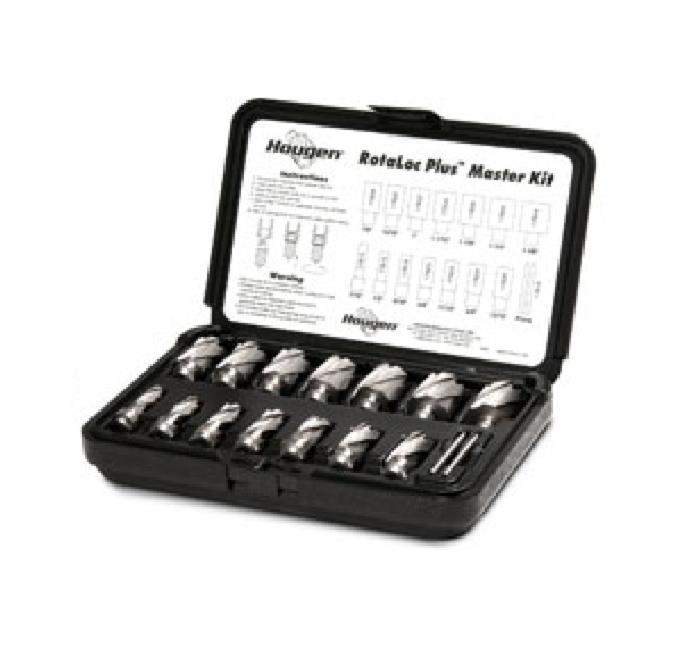

17808	Kit contains (14) cutters, 1″ D.O.C. – 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1-1/16, 1-1/8, 1-1/4 & 1-3/8″ RotaLoc Plus cutters and two pilots (17810) in a sturdy plastic case (For HMD130 only)	1″

* WARNING: This product contains Cobalt, a chemical known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

Want to see all of our annular cutters? Click here to view!

Accessories

HMD130 ACCESSORIES

RotaGel™ Cutting Lube
RotaGel Cutting Lube is an extremely environmentally friendly lubricant for all types of metals and metal working applications. The blue colored gel assures thorough coverage and provides long lasting superior lubrication. Use with annular cutters, taps, drills, reamers, end mills, & more.
Part No.	Description
11748*	Single 8oz Tube
* Individual Tube Not for Distributor Purchase *

RotaFoam™ Cutting Fluid
RotaFoam Cutting Fluid is an extremely heavy-duty, high performance foamy lubricant for all types of metals and metal working applications. “Super Sticky” properties make the foam adhere to the metal and stay on longer. The blue colored foam allows you to “See Where You Spray” and also assures thorough coverage. Use with annular cutters, taps, drills, reamers, end mills, & more (Only Available in the US & Canada)
Part No.	Description
11747*	Single 17oz Can
* Individual Can Not for Distributor Purchase *

Slick-Stik™ Lube
Slick-Stik™Lubricant is softer than other stick lubricants for easy application, providing superior adhesion to the tool, assuring thorough coverage. Use with ferrous and non-ferrous materials. Can be used with all Hougen cutters.
Part No.	Description
11745	16 oz. Slick-Stik™ Lubricant
11746	1.68 oz. Mini Slick-Stik™ Lubricant
