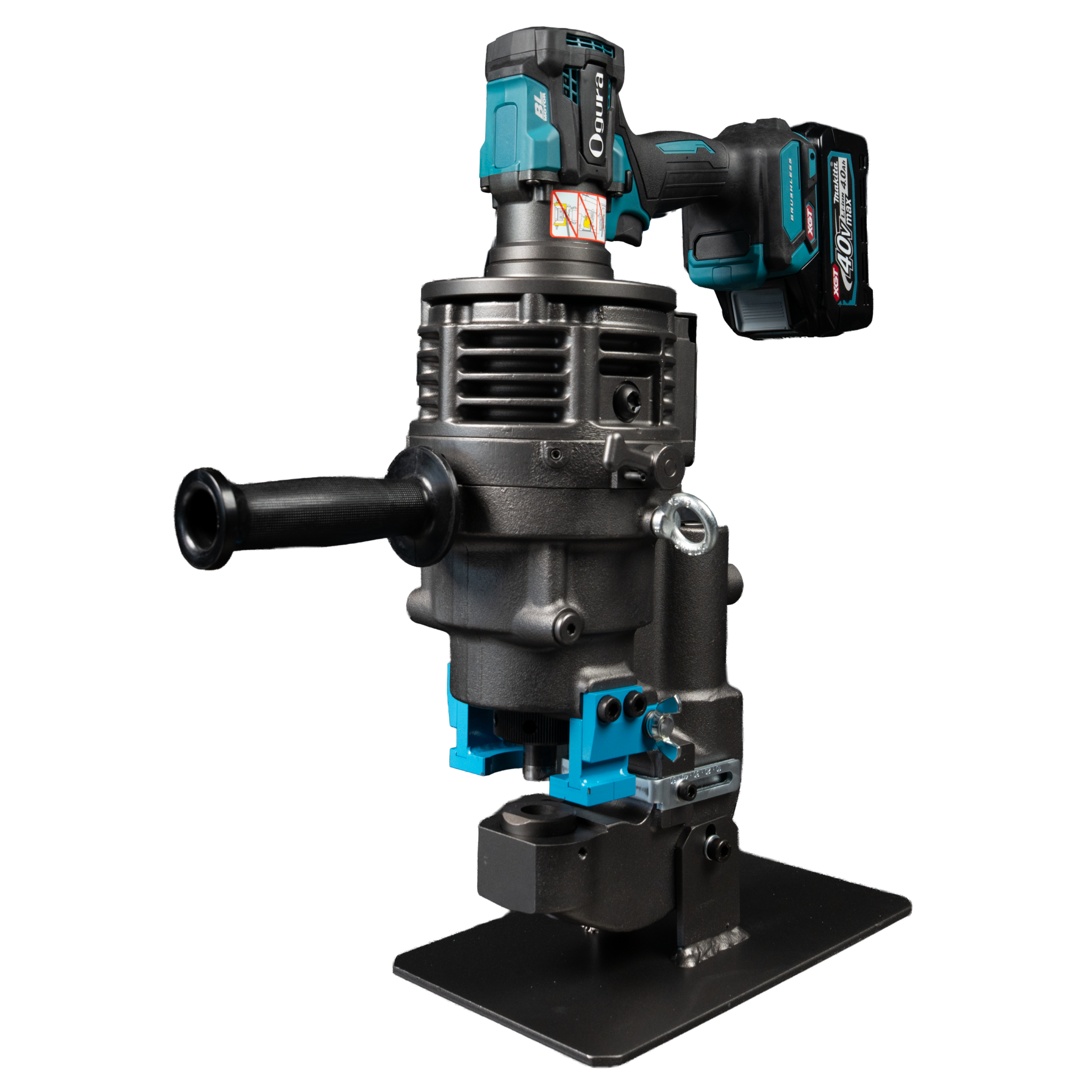

76006PR 40V Cordless Hole Puncher

$6,999.00

Our most powerful model of hole puncher meets the convenience and portability of battery power. With its 40 volt battery, the 76006PR generates 26.9 tons of pressure and will produce up to 15/16″ diameter round holes. In approximately 4 seconds, the 76006PR can punch through material up to 1/2″ thick. Like all Hougen-Ogura hole punchers, its single body design makes it easy to use anywhere. The operator handle rotates 360 degrees and the handle can be mounted in 2 positions in order to punch holes where you need them. Line up the punch with the speed control feature, so you know exactly where the hole will be made. The unit also has eye bolts on both sides for easy attachment of a lift assist or a counter-balance for improved ergonomics.

Includes: Carry case, eye bolts, 13/16″ punch & die and tool kit.

SKU: 76006PR Category:

Description

PRESSURE 26.9 tons
APPROX PUNCHING TIME 4 seconds

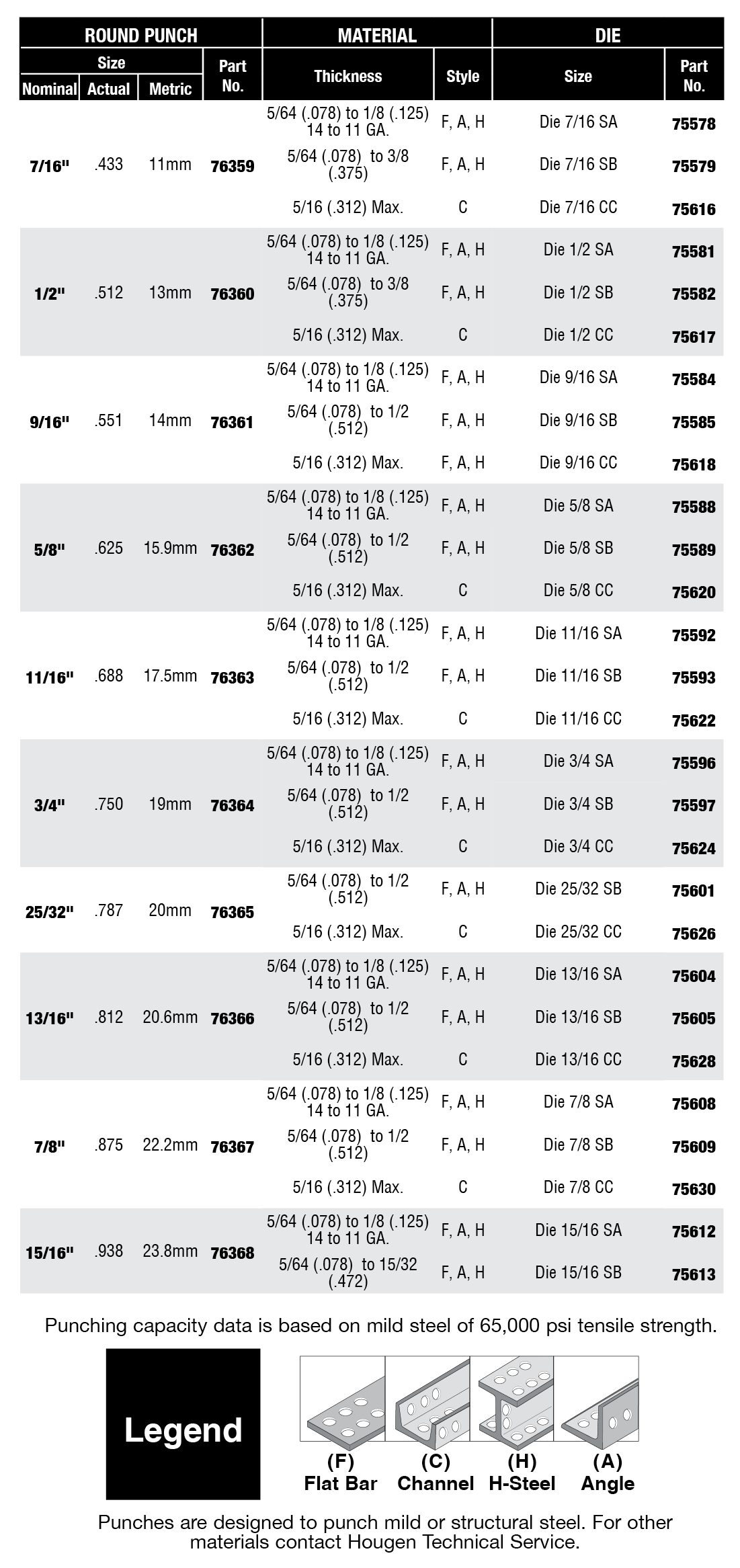

MAX HOLE SIZE – ROUND 15/16″ (23.8 mm)
MAX MATERIAL THICKNESS – ROUND 1/2 ” (12.7 mm)

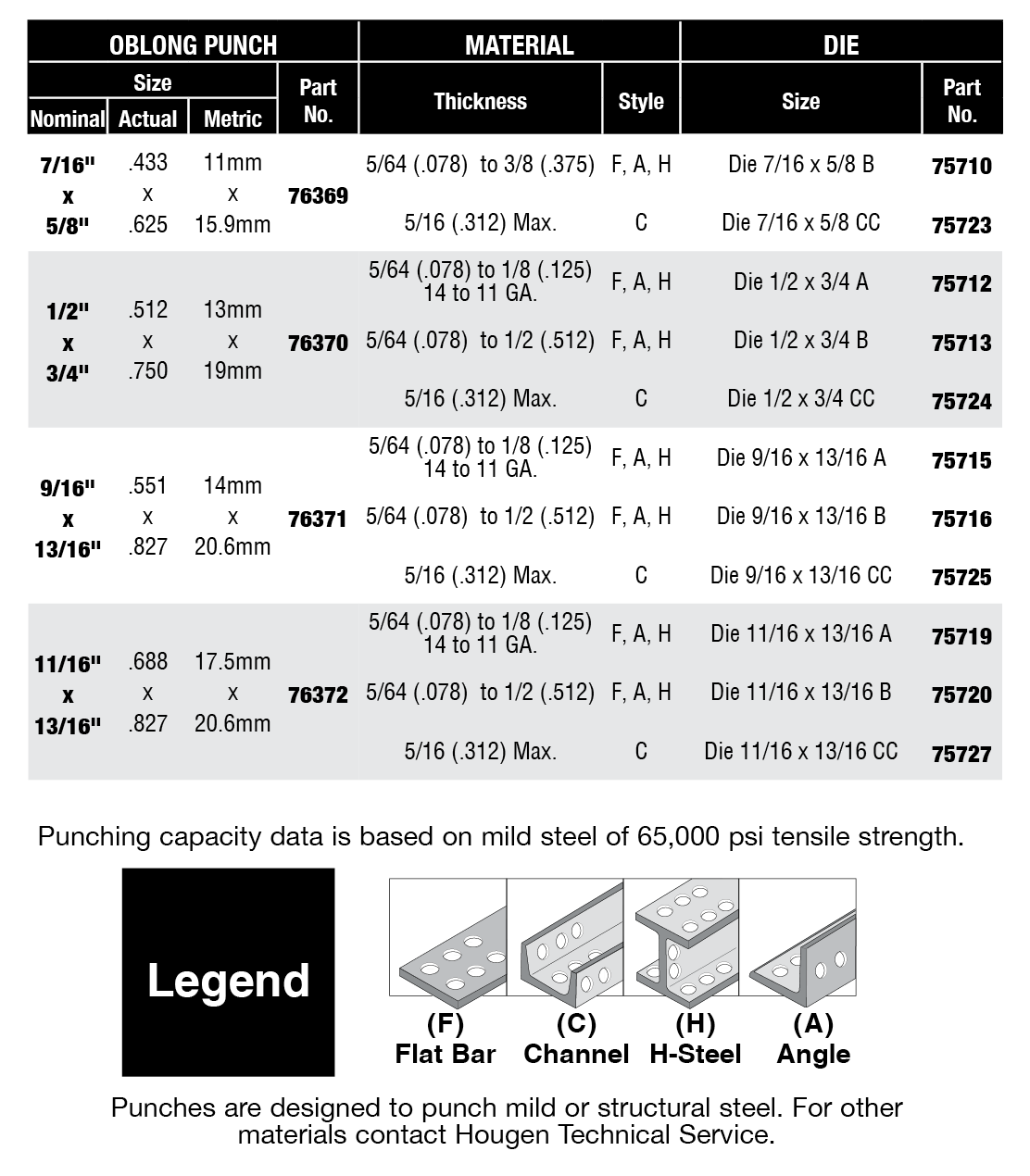

MAX HOLE SIZE – OBLONG 11/16″ x 13/16″ (18 mm x 21 mm)
MAX MATERIAL THICKNESS – OBLONG 1/2″ (12.7 mm)
MAX THROAT DEPTH 1-31/32″ (50 mm)
BATTERY Model: BL4025 2.5Ah Voltage: 36V (40V max)
WEIGHT 52.9 lbs (24 kg)
SHIPPING WEIGHT 68 lbs (30.84 kg)
DIMENSIONS 19.09″ L x 8.93″ W x 17.36″ H (485 mm L x 227 mm W x 441 mm H)
