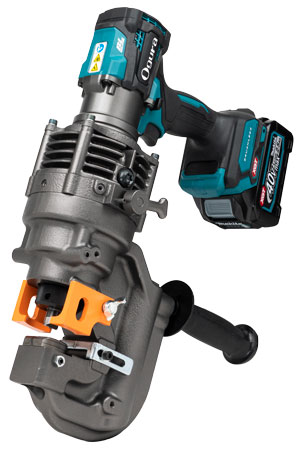

76004PR 40V Cordless Hole Puncher
NOW WITH A 2″ THROAT DEPTH
Punch holes like never before with the 40V Hougen-Ogura hole puncher. It produces 16.9 tons of punching pressure can quickly punch through 3/8″ materials in 4 seconds. Easily confirm the hole position with the jog down feature. Punch automatically returns to the starting position after the punching cycle is complete. If punch ever resists returning to the home position, squeeze the trigger for power feed return. The 76004PR is a self contained unit that utilizes a 40V Lithium-ion battery.
Punch Round & Oblong Holes in These Materials
$5,749.00
Whether you're drilling onsite in B.C., fabricating in Alberta, or maintaining infrastructure in Ontario, we deliver the tools you need, on Canadian time and Canadian terms.
Specifications
| SPEC | INFO |
|---|---|
| Pressure (Tons) | 16.9 |
| Max Throat Depth |
1-9/16″ – (40mm) |
| Approximate Punching Speed | 4 seconds |
| Maximum Hole Size – Round | 25/32″ – (20mm) |
| Maximum Thickness – Round | 3/8″ – (9.5mm) |
| Maximum Hole Size – Oblong | 9/16″ x 13/16″ (14mm x 21mm) |
| Maximum Thickness – Oblong | 3/8″ – (9.5mm) |
| Maximum Punch Throat Depth | 1-9/16″ – (40mm) |
| Weight | 24.9 lbs – (11.3 kg) |
| Battery |
40V |
Dimensions
| – | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| 76004PR | .39 | 1.57 | .59 | 2.85 | 2.56 | 1.77 | 1.73 | – | 2.05 | – |

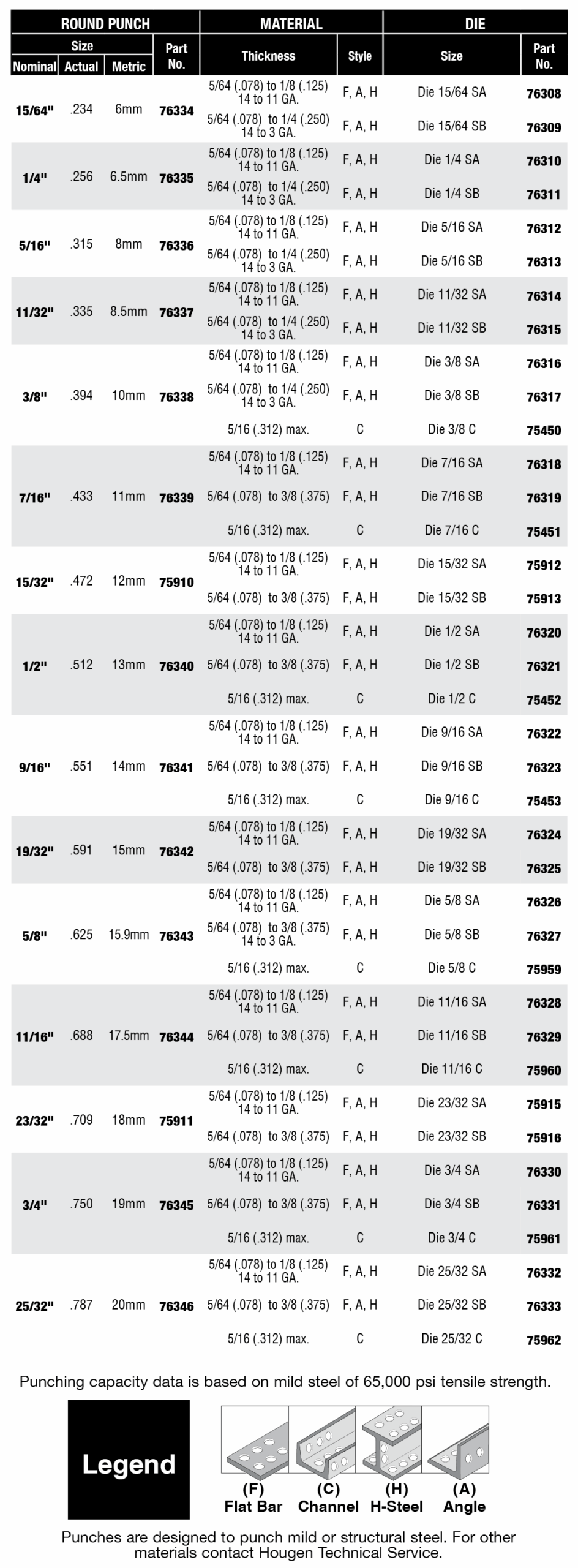

Round Punch & Dies

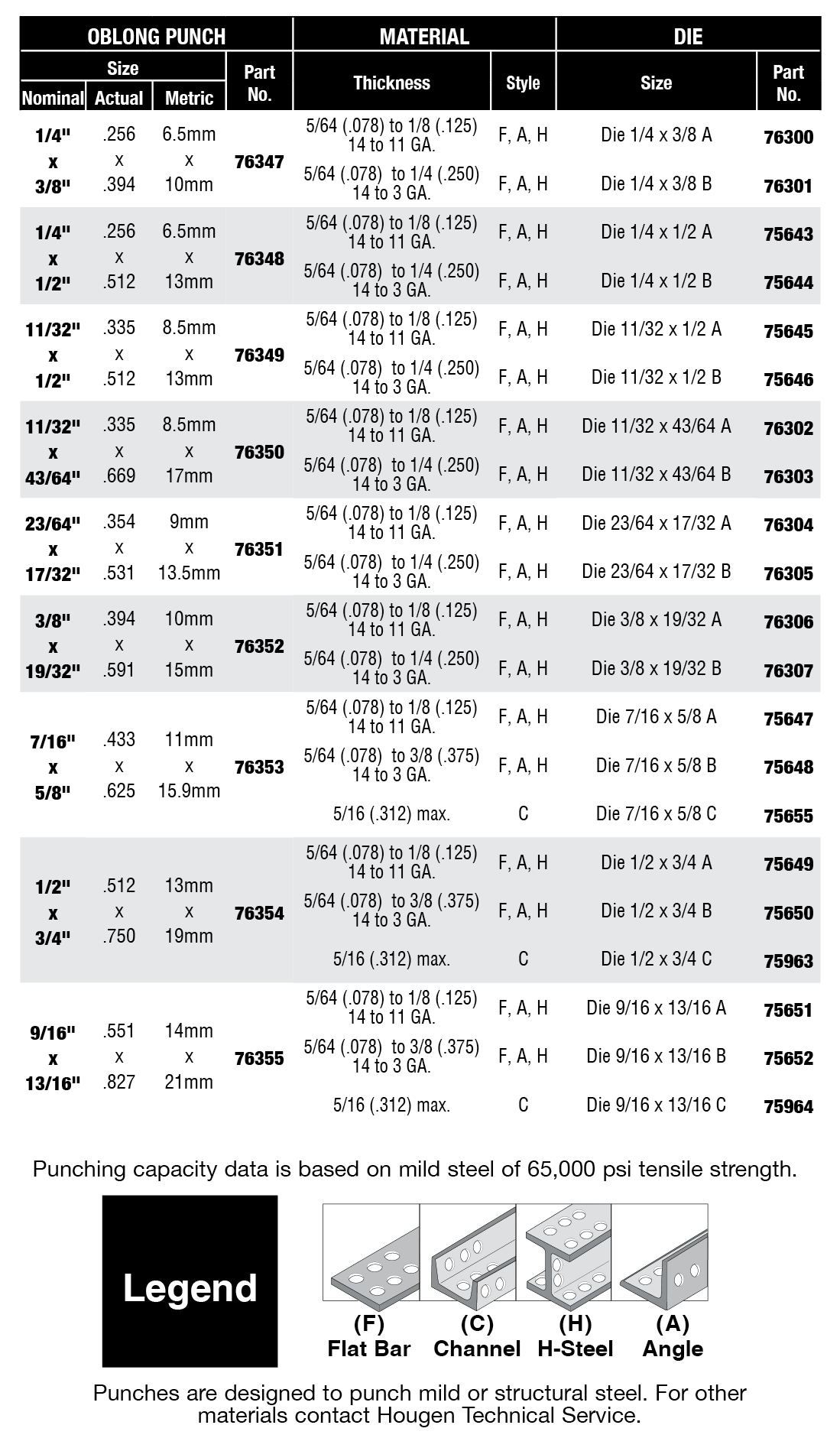

Oblong Punch & Dies
