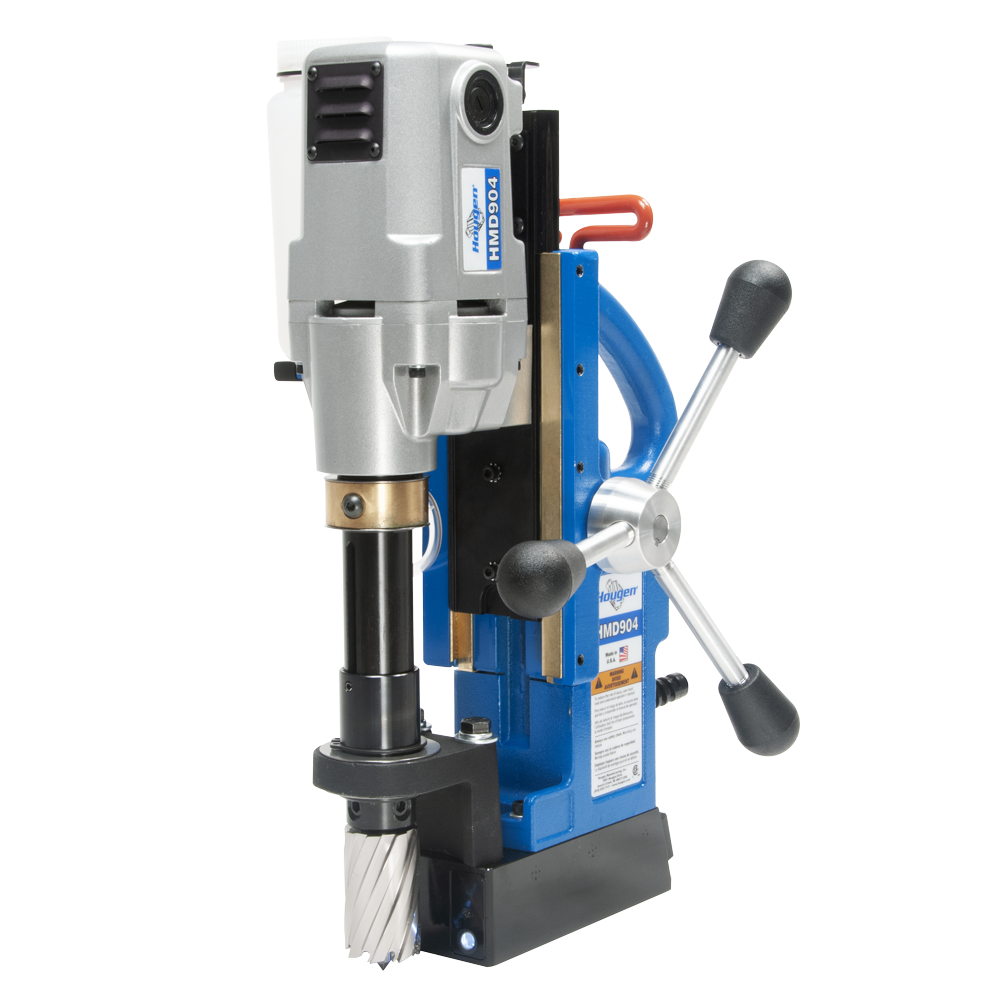

HMD904S – HOUGEN MAG DRILL – SWIVEL/COOLANT – 115V

$1,279.00

HOUGEN HMD904S MAG DRILL - SWIVEL/COOLANT - 115V

The HMD904S has all the standard features of the HMD904C but has a swivel base that allows the operator to precisely line up the pilot with the hole. Carrying case (kit box) included. Comes with one year warranty.

Description

HMD904S – HOUGEN MAG DRILL – SWIVEL/COOLANT – 115V

HMD904S SPECIFICATIONS

Electrical System 115V, 50/60 Hz – 9A, 1035W230V, 50/60 Hz – 4.5A, 1035W
Motor 8A (115V), 4A (230V)450 RPM
Diameter 7/16″ – 1-1/2″ (12mm -38mm)
Depth 2″ (50mm)
Cutter/Mount Rotabroach®, Copperhead™ and Fusion™cutters, 3/4″ (19mm) shank
Dimensions 16-3/8″ H x 7-3/16″ W x 8-1/4″ L(416mm H x 183mm Wx 210mm L)
Swivel Area 1-1/8″ Wx 1-3/8″ L(28.5mm W x 34.9mm L)
Magnet Base 3-1/8″ Wx 6-9/16″ L(79mm Wx 167mm L)
1″ Plate(25mm) Dead Lift1750 lb.

(794 kg)

Drillpoint Breakaway995 lb. (433 kg)
3/8″ Plate(9.5mm) 1310 lb.(594 kg) 710 lb. (322 kg)
SwivelMagnet 1″ Plate(25mm) Dead Lift1340 lb.

(608 kg)

Drillpoint BreakawayForward – 695 lb. (315 kg)

Back – 835 lb. (379 kg)

3/8″ Plate(9.5mm) 1015 lb.(460 kg) Forward – 503 lb. (228 kg)Back – 605 lb. (274 kg)
Net Weight 27.5 lb. (12.5 kg)
Net Weight (904S) 30.5 lb. (13.8 kg)

Need annular cutters for this mag drill? Click here to view

Additional information

Weight 43 lbs
Dimensions 20 x 9 x 17 in
Max Depth

2"/50mm

Max Dia.

1-1/2″/50mm
